78207-118HLF

Headers, Male Pins Overview

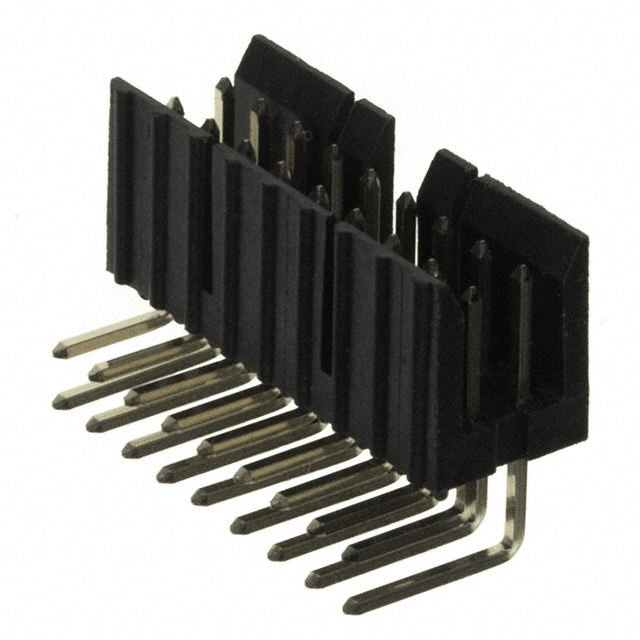

The Amphenol ICC (FCI) 78207-118HLF is a rectangular header connector belonging to the Mini-PV and Basics+ series. It features 18 positions in a dual-row configuration with a 0.100-inch (2.54mm) pitch. The connector utilizes male pin contacts made of phosphor bronze, terminated via solder for right-angle through-hole mounting. Insulation is provided by black thermoplastic material rated UL94 V-0. Contact plating consists of gold or GXT™ with a thickness of 30.0µin (0.76µm).

Headers, Male Pins Feature Summary

• Right-angle board-to-cable/wire mounting style for space-efficient PCB layouts.
• Dual-wall shrouded design ensures correct mating alignment and polarity.
• Friction lock mechanism secures the connection without additional fasteners.

Headers, Male Pins Applications

• Industrial instrumentation control panels
• Factory automation equipment interfaces
• Smart manufacturing (IIoT) sensor connections

Headers, Male Pins Procurement Notes

Verify RoHS compliance status carefully as lead times may vary due to component lifecycle stages. Confirm exact packaging quantities against current distributor listings. Ensure the HLF suffix aligns with project environmental requirements before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this part for applications requiring right-angle termination within a 2.54mm pitch system. The dual-row layout supports higher density interconnects compared to single-row alternatives. Verify that the friction lock type meets the mechanical retention needs of the assembly environment.

Headers, Male Pins Part Context

This component is part of the Mini-PV and Basics+ product lines from Amphenol ICC (FCI). These series are designed for general-purpose interconnect solutions offering flexibility in contact counts and mounting styles. The 78207 base number indicates a specific family of headers compatible with various housing options.

Headers, Male Pins Replacement Considerations

Direct substitutes include the 78207-118 variant. Cross-reference with other 18-position, dual-row, right-angle headers from the same manufacturer series to ensure mechanical and electrical compatibility during replacement scenarios.
