7Q-16.367667MBG-T

Oscillators Overview

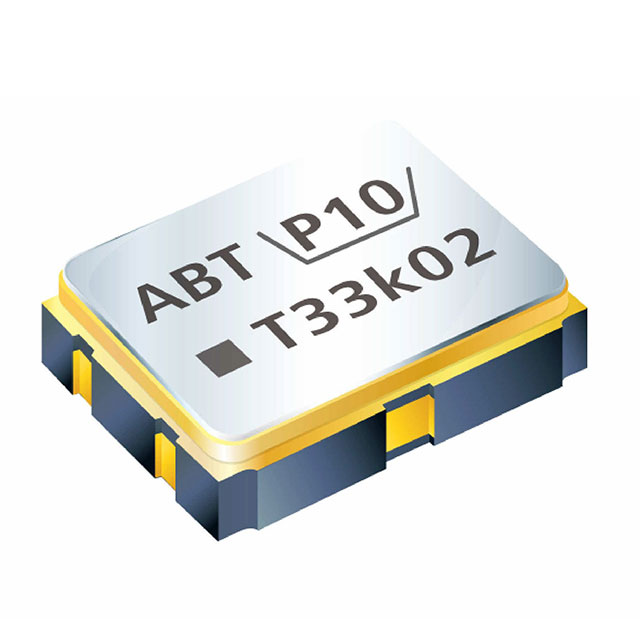

The TXC Corporation 7Q-16.367667MBG-T is a Temperature Compensated Crystal Oscillator (TCXO) operating at a nominal frequency of 16.367667 MHz. It delivers a clipped sine wave output with a frequency stability of ±0.5 ppm across the specified temperature range. The device functions within a supply voltage range of 1.8 V to 3.3 V and utilizes a 10 pF load capacitance. It is housed in a compact SMD package measuring 3.2 mm in length, 2.5 mm in width, and 1 mm in height. The component supports an operating temperature range from -40°C to +85°C.

Oscillators Feature Summary

• Provides high-frequency stability for precise timing applications
• Operates on low voltage power supplies suitable for portable devices
• Compact surface-mount design facilitates automated assembly

Oscillators Applications

• Real-time clock systems requiring accurate timekeeping
• Data logging equipment needing stable frequency references
• GPS receiver modules utilizing specific carrier frequencies

Oscillators Procurement Notes

Verify component authenticity through authorized distributors or direct manufacturer channels. Confirm that the part number matches the exact specification sheet provided by TXC Corporation. Ensure that the ordering suffix corresponds to the required packaging format. Check for any end-of-life notifications or discontinuance alerts associated with this specific model before finalizing procurement plans.

Oscillators Selection Notes

Select this oscillator when a clipped sine wave output is compatible with the target circuit input requirements. Consider the 1.8 V to 3.3 V operating range to ensure compatibility with system power rails. Evaluate the 3.2 x 2.5 mm footprint against available PCB space constraints. Verify that the ±0.5 ppm stability meets the timing accuracy demands of the application environment.

Oscillators Part Context

This component belongs to the 7Q-GPS series of oscillators manufactured by TXC Corporation. It is designed specifically for precision timing applications where size and stability are critical factors. The series typically targets GPS and communication systems requiring reliable frequency generation under varying thermal conditions.

Oscillators Replacement Considerations

The 7L-16.367667MBG-T is a related variant within the same product family. Both parts share similar electrical specifications but differ in physical dimensions and potentially internal compensation characteristics. Verify pinout compatibility and mechanical fit before substituting.
