807-008-531-112

Edgeboard Connectors Overview

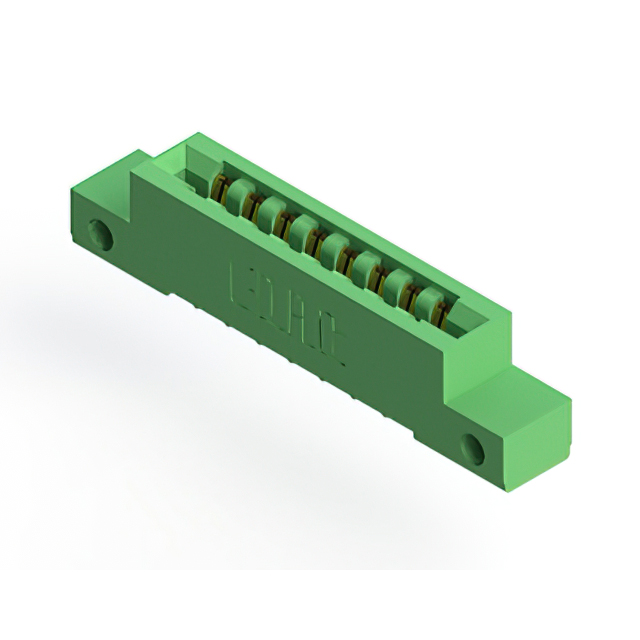

The EDAC Inc. 807-008-531-112 is a standard card edge connector receptacle designed for high-temperature applications. It features 8 positions with a 3.96 mm pitch and supports a board thickness of 1.57 mm. The component utilizes gold-plated copper alloy contacts rated for 5 A current. It employs a single row configuration with wire hole termination and panel mount installation at a right angle. The housing is constructed from thermoplastic material, ensuring durability in demanding environments.

Edgeboard Connectors Feature Summary

• High-temperature insulator construction for reliable performance
• Gold-plated contacts ensure stable electrical connections
• Single row configuration for compact integration

Edgeboard Connectors Applications

• Industrial control systems requiring high-temperature stability
• Panel-mounted electronic assemblies
• Standard card edge interconnect solutions

Edgeboard Connectors Procurement Notes

Verify the specific datasheet version to confirm RoHS compliance status and exact environmental ratings. Ensure the receiving facility has the capability for wire hole termination assembly. Confirm that the panel mounting style aligns with the mechanical design constraints of the target enclosure. Cross-reference the 3.96 mm pitch requirement with the mating card edge specifications to guarantee proper fit.

Edgeboard Connectors Selection Notes

Select this component when a single-row, high-temperature card edge connector is required for panel mounting. The 8-position count suits low-pin-count interfaces. Verify that the application environment does not exceed the thermal limits of the thermoplastic housing. Consider the wire hole termination method against available PCB assembly capabilities. Compare against other 807 series variants if different mounting angles or contact counts are needed.

Edgeboard Connectors Part Context

This part belongs to the EDAC 807 High Temp Series, which provides robust connectivity solutions for harsh environments. The series offers various position counts and mounting options while maintaining consistent 3.96 mm spacing. These connectors are engineered for durability and stable signal transmission in industrial and commercial applications where standard connectors may fail due to thermal stress.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the 807 series include 807-008-531-102, which shares similar electrical characteristics but may differ in housing color or specific manufacturing revisions. Always verify mechanical dimensions and termination type compatibility before swapping components.
