807-056-459-208

Edgeboard Connectors Overview

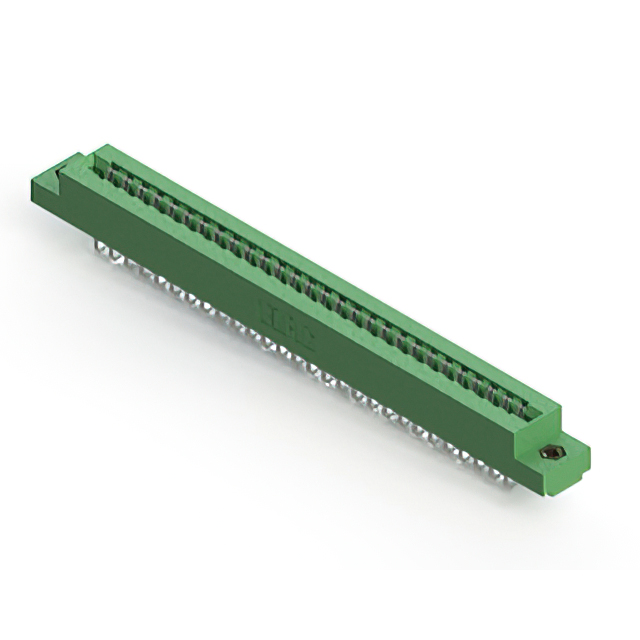

The EDAC Inc. 807-056-459-208 is a high-temperature standard card edge connector from the 807 series. It features 56 positions arranged in a dual-row configuration with a 3.96 mm (0.156 inch) pitch. Designed for panel mount installation at a right angle, this receptacle utilizes gold-plated copper alloy contacts and a green Diallyl Phthalate (DAP) insulator. The unit supports a 5 A current rating and accommodates PCBs with a thickness of 1.57 mm. It employs solder pin termination for secure electrical connection.

Edgeboard Connectors Feature Summary

• High-temperature rated construction suitable for demanding thermal environments
• Dual-edge female contact design for robust daughter board interface
• Gold-plated contacts ensure reliable signal transmission and corrosion resistance

Edgeboard Connectors Applications

• Industrial control systems requiring high-temperature stability
• Medical interconnect solutions
• Agricultural technology equipment

Edgeboard Connectors Procurement Notes

Verify component authenticity through authorized EDAC distributors or official manufacturer channels. Confirm that the specific suffix matches the required dual-row configuration and terminal type. Ensure compatibility with existing panel mounting hardware and PCB stack-up requirements before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this model when a high-temperature card edge connector with a 3.96 mm pitch is required. The dual-row layout provides increased I/O density compared to single-row alternatives. Verify that the 1.57 mm PCB thickness tolerance aligns with the target assembly design specifications.

Edgeboard Connectors Part Context

This component belongs to the EDAC 807 High Temp Series, which specializes in durable card edge connectors for harsh environments. The series offers various position counts and row configurations while maintaining consistent pitch and material standards across the product line.

Edgeboard Connectors Replacement Considerations

Compatible substitutes within the same series include part numbers such as 807-044-459-208 and 807-020-454-112, provided they match the required position count and termination style.
