807-082-422-204

Edgeboard Connectors Overview

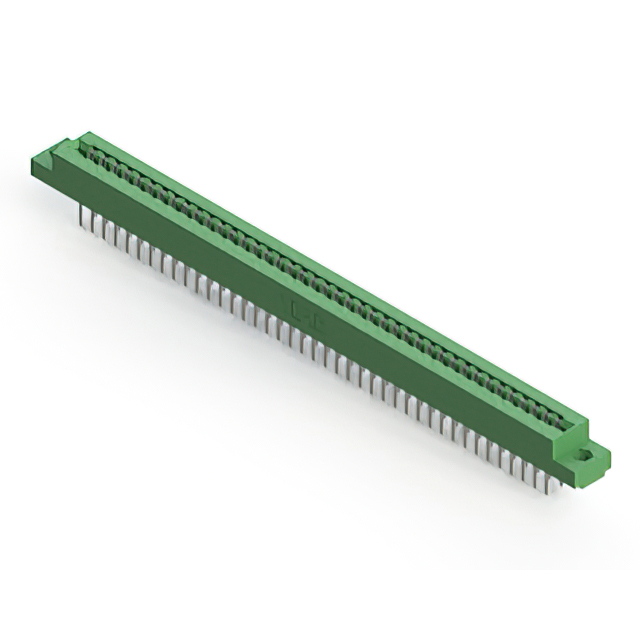

The EDAC Inc. 807-082-422-204 is a standard high-temperature card edge connector receptacle featuring 82 positions arranged in a dual row configuration. It utilizes a 3.96 mm (0.156 inch) pitch and is designed for PCBs with a thickness of 1.57 mm. The contacts are gold-plated copper alloy, rated for 5 A current, while the housing is constructed from Diallyl Phthalate (DAP). Operating temperatures range from -40°C to +125°C, with an insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

• High-temperature capability suitable for demanding environments
• Gold-plated contacts ensure reliable signal transmission
• Dual-row receptacle design for dense interconnect applications

Edgeboard Connectors Applications

• Medical interconnect solutions
• Agricultural technology equipment
• Industrial control systems

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer datasheet to confirm exact contact plating, housing material, and termination style. Confirm RoHS compliance status through official documentation before integration. Check current supply chain availability as distribution may be restricted or limited in certain regions.

Edgeboard Connectors Selection Notes

Select this component when a high-temperature rating up to 125°C is required for card edge interfaces. Ensure the target printed circuit board thickness matches the 1.57 mm specification. Verify that the 82-position dual-row layout fits within the available mechanical envelope and that the 3.96 mm pitch aligns with the mating card edge design.

Edgeboard Connectors Part Context

This part belongs to the EDAC 807 series of standard card edge connectors. The series is characterized by robust construction for harsh environments, including medical and agricultural sectors. The 807 series offers various position counts and mounting styles, providing versatile interconnect options for specialized industrial applications requiring durability.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 807 series variants such as 807-080-559-207 for similar form factors. Verify mechanical dimensions and electrical ratings match exactly before substitution. Consult official EDAC documentation for approved alternative part numbers.
