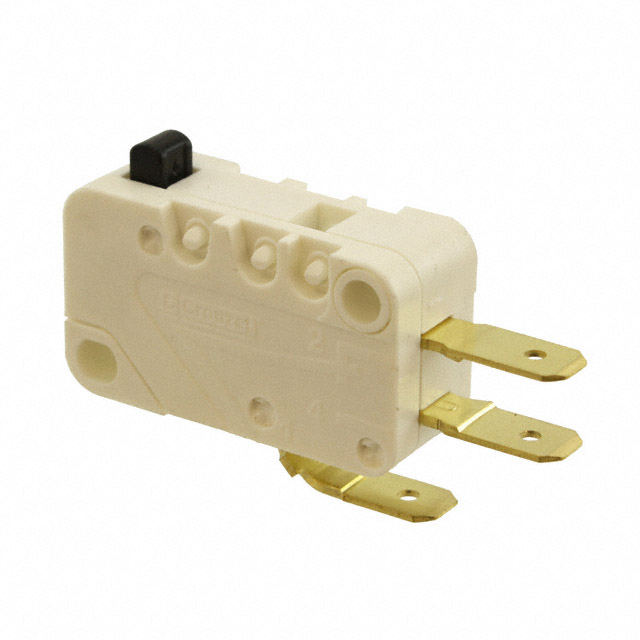

831613C6.0

831613C6.0 is listed in the Limit Switches range at ChipApex. The manufacturer field lists Crouzet. Its product description is SWITCH. ACTUATOR TYPE: NO ACTUAT. Review the specifications below when checking this part for your BOM.

Limit Switches specifications for 831613C6.0

• Description：SWITCH. ACTUATOR TYPE: NO ACTUAT
• Series：83161
• Mfr：Crouzet
• Package：Box
• Circuit：SPDT
• Switch Function：On-Mom
• Current Rating (Amps)：10A (AC)
• Voltage Rating - AC：250 V
• Actuator Type：Round (Pin Plunger)
• Mounting Type：Chassis Mount
• Termination Style：Quick Connect - 0.187" (4.7mm)
• Ingress Protection：-
• Features：-
• Operating Force：82gf
• Release Force：20gf
• Operating Position：0.579" (14.7mm)
• Pretravel：-
• Differential Travel：0.014" (0.35mm)
• Overtravel：0.047" (1.20mm)
• Operating Temperature：-20°C ~ 125°C
• Voltage Rating - DC：-

Limit Switches datasheet and documents for 831613C6.0
