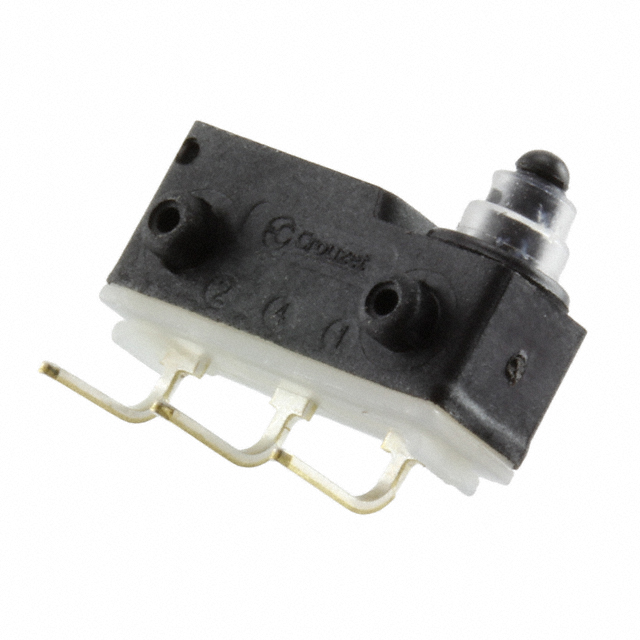

83200006

83200006 is listed in the Limit Switches range at ChipApex. The manufacturer field lists Crouzet. Its product description is SWITCH SNAP ACTION SPDT 4A 250V. Review the specifications below when checking this part for your BOM.

Limit Switches specifications for 83200006

• Description：SWITCH SNAP ACTION SPDT 4A 250V
• Series：83200
• Mfr：Crouzet
• Package：Bulk
• Circuit：SPDT
• Switch Function：On-Mom
• Current Rating (Amps)：4A (AC)
• Voltage Rating - AC：250 V
• Actuator Type：Round (Pin Plunger)
• Mounting Type：Through Hole, Right Angle
• Termination Style：PC Pin
• Ingress Protection：IP67/IP69K - Dust Tight, Water Resistant, Waterproof
• Features：Actuator Mounted Right Side
• Operating Force：153gf
• Release Force：20gf
• Operating Position：0.413" (10.5mm)
• Pretravel：-
• Differential Travel：0.006" (0.15mm)
• Overtravel：0.079" (2.0mm)
• Operating Temperature：-40°C ~ 90°C
• Voltage Rating - DC：-

Limit Switches datasheet and documents for 83200006
