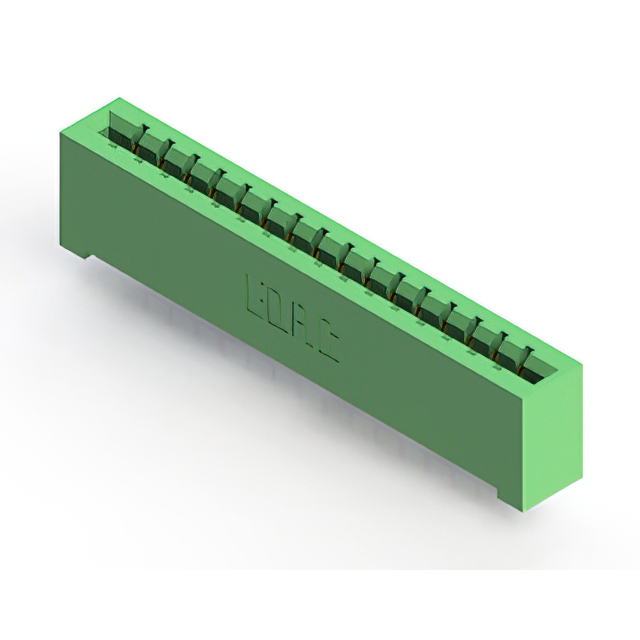

833-016-524-101

$26.10

Description：CONN EDGE SGL FMALE 16POS 0.156
Series：833
Mfr：EDAC Inc.
Package：Box

SKU:742d9c4cb9bc Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

833-016-524-101 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE SGL FMALE 16POS 0.156. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 833-016-524-101

Description：CONN EDGE SGL FMALE 16POS 0.156
Series：833
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Single Edge
Gender：Female
Number of Positions/Bay/Row：16
Number of Positions：16
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：1
Pitch：0.156" (3.96mm)
Read Out：Single
Features：-
Mounting Type：Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Green
Flange Feature：-
Operating Temperature：-40°C ~ 125°C

Edgeboard Connectors datasheet and documents for 833-016-524-101

833-016-524-101

Edgeboard Connectors Overview

The EDAC Inc. 833-016-524-101 is a standard card edge connector featuring 16 positions with a 3.96 mm pitch. Designed for single-edge board insertion, it utilizes cantilever contacts plated with gold over a copper alloy substrate to ensure reliable signal transmission. The housing is constructed from diallyl phthalate (DAP) and is colored green. This component supports a current rating of 3 A and operates within a temperature range of -40°C to +125°C. It is intended for panel mounting applications.

Edgeboard Connectors Feature Summary

Cantilever contact design facilitates secure mating with single-edge circuit boards.
Gold-plated copper alloy contacts provide durable conductivity and corrosion resistance.
Diallyl phthalate (DAP) insulation offers stable mechanical properties across wide temperature ranges.

Edgeboard Connectors Applications

Medical interconnect solutions
Agricultural technology equipment
Industrial control systems

Edgeboard Connectors Procurement Notes

Verify the specific suffix configuration against official EDAC documentation to confirm physical dimensions and termination style. Confirm availability status through authorized distributors as supply may be restricted in certain regions. Ensure compatibility with the target PCB thickness and panel mounting requirements before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this model when a 16-position interface with a 3.96 mm pitch is required for vertical or panel-mounted configurations. The 3 A current rating and high-temperature tolerance make it suitable for demanding environments. Verify that the single-row cantilever contact style aligns with the mechanical constraints of the host system design.

Edgeboard Connectors Part Context

This component belongs to the EDAC 833 series of standard card edge connectors. The series provides various position counts and mounting angles to support diverse electronic assembly needs. The 833 series is characterized by its robust construction and consistent electrical performance across different industrial sectors.

Edgeboard Connectors Replacement Considerations

Cross-reference part numbers such as 833-016-521-112 or 833-016-524-101 variants for similar specifications. Ensure that any substitute maintains the same 16-position count, 3.96 mm pitch, and DAP housing material to guarantee mechanical fit and electrical continuity.
