833-028-560-201

Edgeboard Connectors Overview

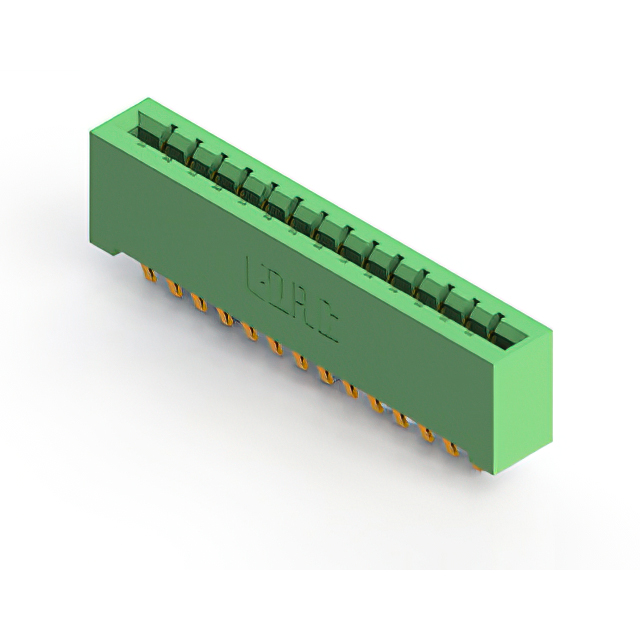

The EDAC Inc. 833-028-560-201 is a standard card edge connector from the 833 series, designed for panel mount applications. It features a single row with 28 positions and a pitch of 3.96 mm (0.156 inches). The connector supports a board thickness of 1.57 mm and utilizes gold-plated copper alloy contacts with a current rating of 3 A. The housing is constructed from diallyl phthalate (DAP), providing durability in industrial environments.

Edgeboard Connectors Feature Summary

• Gold-plated contacts ensure reliable signal transmission and corrosion resistance
• Diallyl phthalate housing offers robust mechanical stability
• Single-row configuration simplifies PCB layout integration

Edgeboard Connectors Applications

• Industrial control systems requiring durable interconnects
• Agricultural technology equipment operating in harsh conditions
• Medical device assemblies needing reliable signal paths

Edgeboard Connectors Procurement Notes

Verify availability through authorized distributors as supply may be restricted. Confirm RoHS compliance status prior to ordering. Ensure the selected variant matches the required contact count and mounting style for your specific design implementation.

Edgeboard Connectors Selection Notes

Select this model for applications requiring a 28-position interface with a 3.96 mm pitch. Verify that the target PCB thickness aligns with the 1.57 mm specification. Consider the DAP housing material for environmental resilience in demanding operational settings.

Edgeboard Connectors Part Context

This component belongs to the EDAC 833 series, which provides standard card edge connectors for various industries. The series includes options for different position counts and mounting angles, supporting both vertical and right-angle configurations across single and dual rows.

Edgeboard Connectors Replacement Considerations

Cross-reference with other 833 series variants such as 833-037-558-112 or 833-038-542-101 if different position counts are needed. Ensure pinout compatibility and physical dimensions match when substituting within the same family.
