842-020-544-102

Edgeboard Connectors Overview

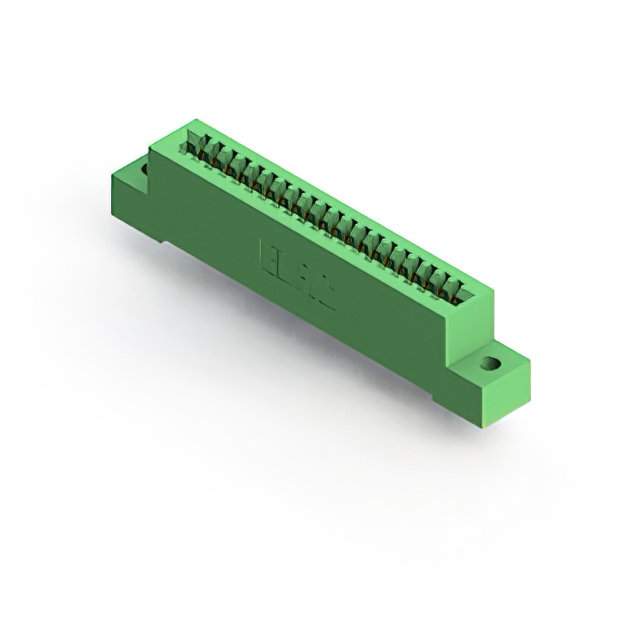

The EDAC 842-020-544-102 is a standard card edge receptacle featuring 20 positions with a 2.54 mm (0.100 inch) contact spacing and 5.08 mm row spacing. Designed for single-edge board insertion, it accommodates a nominal PCB thickness of 1.57 mm (0.062 inch). The connector utilizes gold-plated copper alloy contacts housed in a green thermoplastic polyester insulator. It employs a through-hole vertical mounting style with solder lug termination to ensure secure mechanical attachment and reliable electrical connectivity.

Edgeboard Connectors Feature Summary

• Accepts printed circuit boards with a nominal thickness of 1.57 mm
• Features gold-plated contacts for enhanced conductivity and corrosion resistance
• Utilizes a high-profile insulator body for structural stability

Edgeboard Connectors Applications

• High-temperature industrial interconnect solutions
• Medical device signal transmission
• Agricultural technology equipment connections

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer datasheet to confirm exact termination type, plating specification, and mounting configuration. Ensure the selected variant matches the required PCB thickness and current rating for the target application environment. Confirm RoHS compliance status directly from the official documentation before procurement.

Edgeboard Connectors Selection Notes

Select this component when a single-row, 20-position connection is required for 0.062-inch thick boards. Consider the vertical through-hole mounting style for panel or chassis integration. Evaluate the thermal performance requirements as the series supports high-temperature environments up to +125°C, ensuring compatibility with the operational limits of the connected system.

Edgeboard Connectors Part Context

This part belongs to the EDAC 842 Series, which provides standard card edge connectors designed for robust performance. The series offers various position counts and termination options, catering to diverse electronic assembly needs. EDAC specializes in interconnect solutions for demanding sectors including medical, aerospace, and industrial applications, emphasizing durability and reliability.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC cross-reference guide for verified substitute part numbers. Verify that any alternative maintains identical 2.54 mm pitch, 20-position count, and 1.57 mm board thickness compatibility to ensure mechanical fit.
