845-016-544-802

Edgeboard Connectors Overview

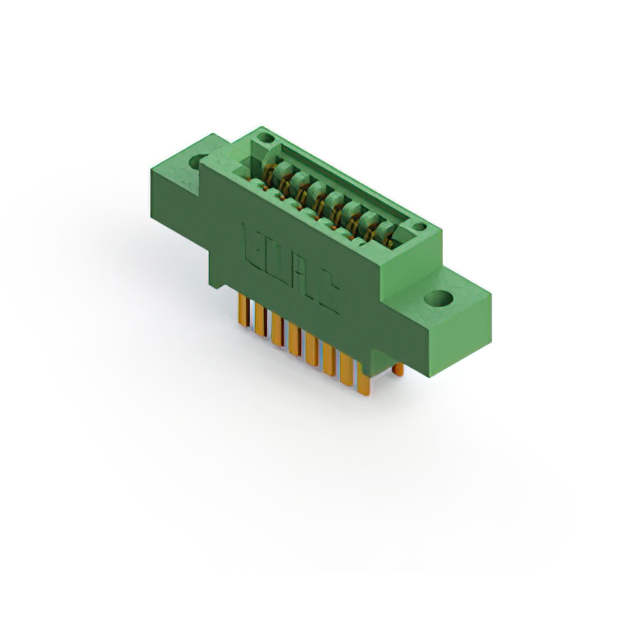

The EDAC Inc. 845-016-544-802 is a dual-edge card edge connector from the 845 High Temp series, designed for panel mount applications. It features 16 positions with a 0.100 inch (2.54 mm) pitch and utilizes gold-plated copper alloy contacts. The housing is constructed from green Diallyl Phthalate (DAP), supporting a maximum operating temperature of +125°C and a minimum of -40°C. This component provides reliable electrical interconnection for high-temperature environments.

Edgeboard Connectors Feature Summary

• High-temperature rated construction suitable for demanding thermal environments
• Gold-plated contacts ensure reliable signal transmission and corrosion resistance
• Dual-edge female configuration accommodates specific board insertion requirements

Edgeboard Connectors Applications

• Industrial control systems requiring thermal stability
• Automotive electronics modules
• Aerospace and defense instrumentation
• Medical equipment interfaces

Edgeboard Connectors Procurement Notes

Verify the complete part number including suffixes to confirm specific plating thickness and housing color variants. Confirm that the target application supports the specified 0.100-inch pitch and dual-edge form factor. Ensure compatibility with the required panel mounting style and soldering process parameters before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this connector when high-temperature performance is critical, as it operates up to +125°C. Choose the dual-edge variant only if the mating card design requires engagement on both edges. Verify that the 16-position count matches the circuit requirements and that the 2.54mm pitch aligns with the PCB trace layout specifications.

Edgeboard Connectors Part Context

This component belongs to the EDAC 845 series, which specializes in high-temperature card edge connectors. The series is engineered for robust performance in harsh conditions, utilizing durable DAP materials. The 845-016-544-802 specifically represents a dual-edge configuration within this lineup, distinct from single-edge or vertical variants found in other model numbers.

Edgeboard Connectors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Cross-reference with other EDAC 845 series models for similar pitch and position counts, ensuring identical thermal ratings and contact configurations.
