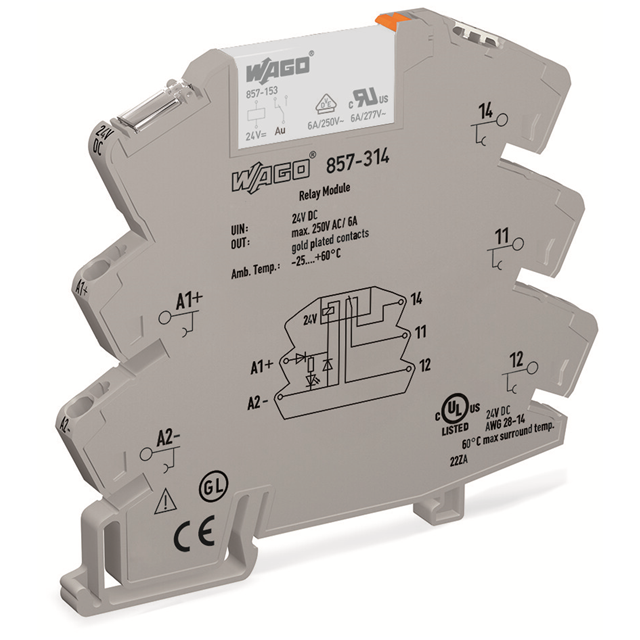

857-314

857-314 is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists WAGO Corporation. Its product description is RELAY GEN PURPOSE SPDT 6A 24V. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for 857-314

• Description：RELAY GEN PURPOSE SPDT 6A 24V
• Series：857
• Mfr：WAGO Corporation
• Package：Box
• Mounting Type：DIN Rail
• Coil Voltage：24VDC
• Contact Form：SPDT (1 Form C)
• Contact Rating (Current)：6:00 AM
• Switching Voltage：250VAC - Max
• Load - Max Switching：1500VA
• Coil Current：10 mA
• Coil Type：Non Latching
• Features：Lighted Indicator
• Termination Style：Spring Terminal
• Seal Rating：-
• Coil Insulation：-
• Must Operate Voltage：-
• Must Release Voltage：-
• Operating Temperature：-40°C ~ 60°C
• Contact Material：Silver Nickel (AgNi), Gold (Au)
• Approval Agency：EAC, UL
• Relay Type：General Purpose
• Grade：-
• Qualification：-
• Operate Time：6 ms
• Release Time：6 ms

Power Relays, Over 2 Amps datasheet and documents for 857-314
