895-015-523-407

Edgeboard Connectors Overview

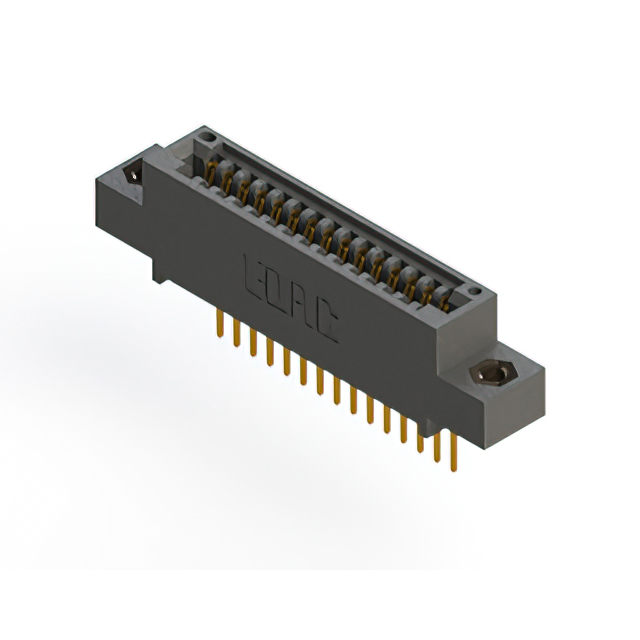

The EDAC Inc. 895-015-523-407 is a standard card edge connector designed for vertical panel mount applications. It features a dual row configuration with 15 positions and a contact spacing of 0.100 inches (2.54 mm). The connector utilizes female contacts with gold plating over nickel, suitable for reliable signal transmission. It accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). The insulator body is constructed from black polyphenylene sulfide (PPS), providing high thermal stability and mechanical strength.

Edgeboard Connectors Feature Summary

• Vertical panel mount installation style for secure board retention
• Gold-plated copper alloy contacts ensure low resistance and corrosion resistance
• High-profile insulator body accommodates specific board thickness requirements

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Medical equipment needing reliable signal pathways
• Telecommunications infrastructure components

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm contact arrangement and plating specifications against project requirements. Ensure compatibility with the target PCB thickness of 0.062 inches. Confirm RoHS compliance status if environmental regulations apply to the assembly. Cross-reference the datasheet for precise mounting hole dimensions to validate enclosure fitment before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a vertical orientation is required for single-sided or double-sided card edge insertion. The 0.100-inch pitch suits general-purpose digital and analog signals. Consider the 15-position count for moderate density needs. Evaluate the operating temperature range of -40°C to +125°C against environmental conditions. Verify that the panel mount flange design aligns with available chassis space.

Edgeboard Connectors Part Context

This part belongs to the EDAC 895 series of standard card edge connectors. The series offers various position counts and row configurations to support diverse interface needs. The 895 series is characterized by its durable PPS insulator material and standardized 0.100-inch spacing. It serves as a foundational interconnect solution for OEMs designing modular electronic assemblies across multiple industries.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include parts with identical pitch and row count but different position numbers, such as 895-018-523-407. Verify mechanical footprint compatibility when considering alternative manufacturers. No direct cross-brand equivalents are confirmed in public documentation without custom engineering.
