895-016-544-201

Edgeboard Connectors Overview

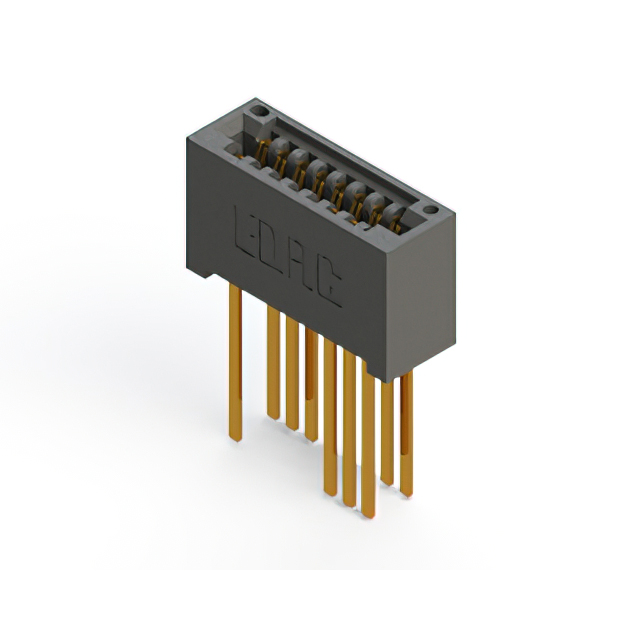

The EDAC Inc. 895-016-544-201 is a standard card edge connector designed for dual-edge PCB insertion. It features 16 positions with a 0.100-inch (2.54mm) pitch across two rows. The unit utilizes female contacts with gold plating and wire wrap termination. Constructed with a polyphenylene sulfide (PPS) insulator, it supports panel mount installation in a vertical orientation. The component operates within a temperature range of -40°C to +125°C.

Edgeboard Connectors Feature Summary

• Dual-edge female contact configuration for secure board retention
• Gold-plated copper alloy contacts ensure reliable signal transmission
• Wire wrap termination method provides robust electrical connections
• Polyphenylene sulfide housing offers high thermal stability

Edgeboard Connectors Applications

• Industrial control systems requiring durable interconnects
• Telecommunications equipment backplanes
• Automotive electronic modules
• Test and measurement instrumentation

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm pin count, row configuration, and termination style. Ensure compatibility with target PCB thickness specifications before procurement. Cross-reference the part number with authorized distributors to confirm current availability status and lead times. Validate RoHS compliance requirements against project specifications.

Edgeboard Connectors Selection Notes

Select this connector when a dual-edge interface with a 2.54mm pitch is required. Confirm that the application environment falls within the specified operating temperature range. Verify that the wire wrap termination method aligns with the assembly process capabilities. Ensure the panel mount style fits the mechanical enclosure constraints.

Edgeboard Connectors Part Context

This component belongs to the EDAC 895 series of standard card edge connectors. The series offers various position counts and termination options. The 895 series is engineered for general-purpose electronic applications requiring reliable board-to-board or board-to-backplane connectivity.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC 895 Series Ordering Guide for verified substitute part numbers. Ensure any replacement maintains identical pitch, row count, and termination type.
