895-031-541-412

Edgeboard Connectors Overview

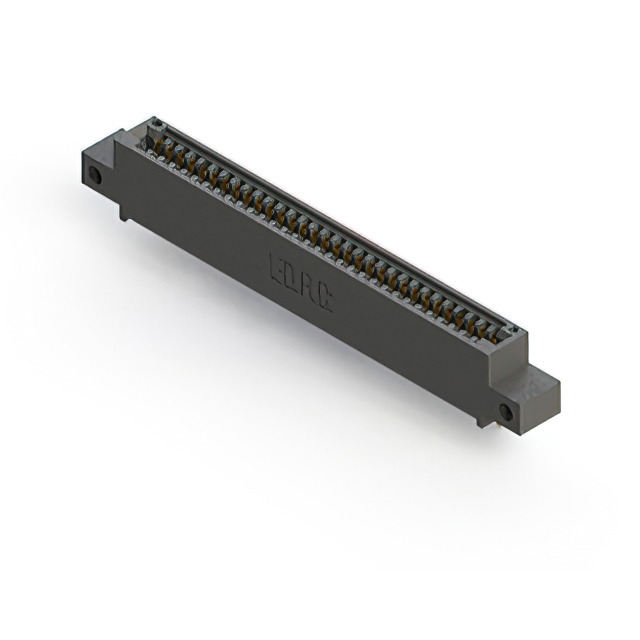

The EDAC Inc. 895-031-541-412 is a single-row card edge connector receptacle designed for vertical panel mount applications. It features 31 positions with a 0.100-inch (2.54mm) contact spacing. The connector utilizes gold-plated copper alloy contacts and a black polyphenylene sulfide (PPS) insulator. Termination is achieved via wire wrap tails measuring 0.64mm square and 19.05mm long. It operates within a temperature range of -40°C to +125°C.

Edgeboard Connectors Feature Summary

• Single row female connector configuration for non-specified card edge boards
• Wire wrap termination method with flush mounting lugs
• Gold-plated contacts on copper alloy substrate
• Polyphenylene sulfide insulator material

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Telecommunications equipment backplanes
• Test and measurement instrumentation
• Automotive electronic modules

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to ensure compatibility with required board thickness and termination style. Confirm that the wire wrap tail dimensions match the design specifications. Check for any recent product change notifications or obsolescence notices from EDAC Inc. prior to finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a single-row, vertical card edge interface is required. Ensure the mating card thickness falls within the connector's specified tolerance. Verify that the wire wrap termination process is compatible with the assembly line capabilities. Consider the operating temperature range if the environment exceeds standard commercial limits.

Edgeboard Connectors Part Context

This part belongs to the EDAC 895 series, which offers various configurations of card edge connectors. The series provides options for different row counts, termination styles, and contact spacings. The 895 series is characterized by its use of PPS insulators and gold-plated contacts for reliable performance in demanding environments.

Edgeboard Connectors Replacement Considerations

Direct substitutes may include other EDAC 895 series parts with matching position counts and termination types. Cross-reference with similar single-row card edge connectors from other manufacturers ensuring identical pinout, spacing, and mechanical dimensions are maintained.

Edgeboard Connectors FAQ

What is the termination type for the 895-031-541-412?

The termination type is wire wrap.

How many positions does this connector have?

It has 31 positions.
