895-032-556-812

Edgeboard Connectors Overview

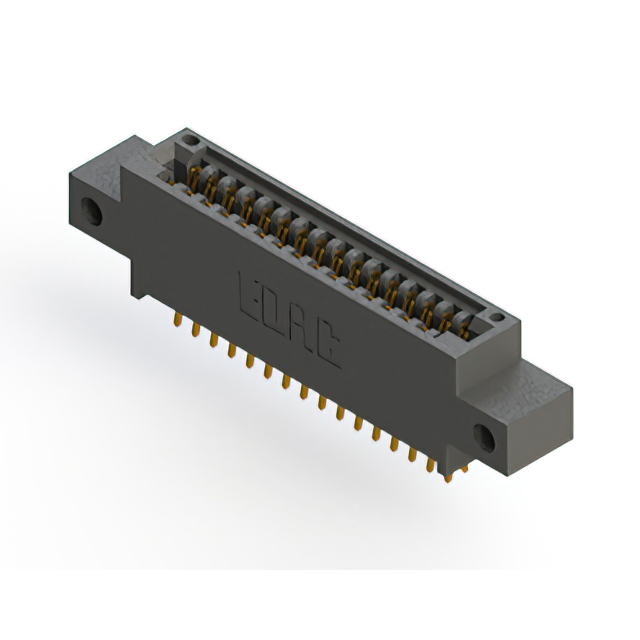

The EDAC Inc. 895-032-556-812 is a standard card edge connector receptacle featuring a dual female configuration with 32 positions. It utilizes a .100 inch (2.54mm) contact pitch and a .200 inch (5.08mm) row spacing. Designed for panel mount installation in a vertical orientation, the component accepts printed circuit boards with a nominal thickness of .062 inches (1.57mm). The contacts are gold-plated copper alloy, while the insulator body is constructed from black polyphenylene sulfide (PPS). Rated for 3A current at an insulation resistance of 5 GOhms, it operates within a temperature range of -40°C to +125°C.

Edgeboard Connectors Feature Summary

• Dual row female contact configuration for reliable signal transmission
• High profile insulator body constructed from durable PPS material
• Gold-plated contacts ensure corrosion resistance and low contact impedance
• Vertical panel mount design facilitates secure board insertion

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Communication equipment backplanes
• Medical device internal circuitry
• Energy management hardware modules

Edgeboard Connectors Procurement Notes

Verify the complete manufacturer part number against official EDAC documentation to confirm compatibility. Ensure that the ordering suffix matches the required termination style and plating specifications. Confirm RoHS compliance status through the latest datasheet or environmental files provided by the manufacturer. Cross-reference the pin count and pitch dimensions with the target PCB layout to prevent mechanical mismatch during assembly.

Edgeboard Connectors Selection Notes

Select this component when a vertical, panel-mount solution is required for double-sided edge cards. The .100 inch pitch suits general-purpose digital and analog signals. Verify that the target PCB thickness aligns with the .062 inch specification. Consider the operating temperature range if the environment exceeds standard commercial limits. Evaluate the current rating against the total load requirements of the application circuit.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 895 series, which focuses on standard card edge interfaces. The series offers various position counts and termination options. The 895 model line is characterized by its high-profile housing and robust mechanical retention. It serves as a foundational component for modular electronic assemblies where reliable physical and electrical connection is critical.

Edgeboard Connectors Replacement Considerations

Direct substitutes may include other EDAC 895 series variants with matching pin counts and pitch. Verify that alternative parts maintain the same vertical panel mount style and dual row configuration. Check for identical termination types and contact plating materials to ensure performance parity.
