895-038-559-812

Edgeboard Connectors Overview

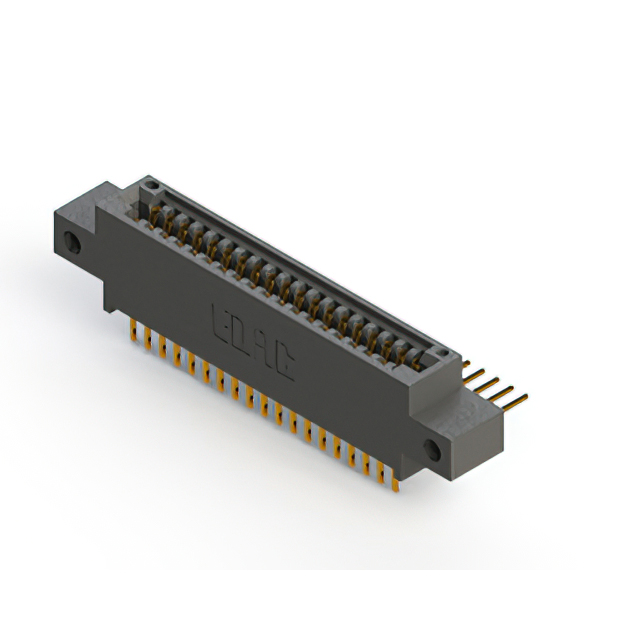

The EDAC Inc. 895-038-559-812 is a standard card edge connector receptacle featuring a dual female configuration with 38 positions. It utilizes a 0.100-inch (2.54mm) pitch and is designed for panel mount installation at a right angle. The contacts are gold-plated copper alloy, housed in black polyphenylene sulfide (PPS). This component supports solder pin termination and is rated for operation within a temperature range of -55°C to +125°C.

Edgeboard Connectors Feature Summary

• Dual female contact configuration for reliable card edge mating
• Gold-plated copper alloy contacts for corrosion resistance
• Polyphenylene sulfide housing material for thermal stability
• Right-angle panel mount design for space-efficient integration

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Telecommunications equipment board connections
• Test and measurement instrument interfaces
• Automotive electronic module mounting

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to ensure compatibility with required plating thickness and housing color specifications. Confirm that the panel cutout dimensions align with the mechanical drawing provided in the official documentation. Check for any recent updates to the RoHS compliance status or material declarations before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this connector when a right-angle, panel-mount solution is required for dual-edge cards with a 2.54mm pitch. Ensure the application environment does not exceed the specified operating temperature limits. Consider the PPS housing material properties for chemical resistance if exposed to harsh industrial fluids. Verify that the solder pin termination method matches the assembly process capabilities.

Edgeboard Connectors Part Context

This component belongs to the EDAC 895 series of standard card edge connectors. The series is characterized by high-density configurations and durable construction suitable for demanding environments. The 895 series offers various position counts and mounting styles, providing flexibility for diverse PCB interface requirements across multiple industries.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC substitution guide for direct replacements. Verify mechanical footprint and electrical ratings match exactly. Generic equivalents may differ in contact plating quality or housing material performance.
