895-120-525-808

Edgeboard Connectors Overview

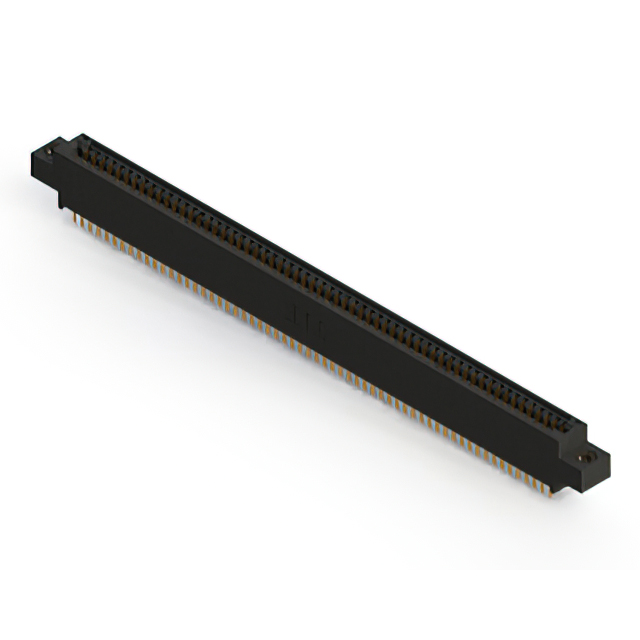

The EDAC Inc. 895-120-525-808 is a dual-edge female card edge connector featuring 120 positions with a 0.100-inch (2.54mm) pitch. Designed for through-hole mounting, it utilizes gold-plated copper alloy contacts and a black polyphenylene sulfide (PPS) housing. The component supports board thicknesses of 0.054 to 0.070 inches and operates within a temperature range of -40°C to 125°C.

Edgeboard Connectors Feature Summary

• Dual-edge female configuration for robust double-sided circuit board connections
• Gold-plated contacts ensure reliable signal transmission and corrosion resistance
• High-temperature PPS insulation material provides stability in demanding environments

Edgeboard Connectors Applications

• Industrial control systems requiring high-density interconnects
• Telecommunications equipment backbone connections
• Automotive electronics modules
• Test and measurement instrumentation boards

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official 895 Series Ordering Guide to confirm contact tail type and flange characteristics. Ensure compatibility with the target PCB stack-up thickness and verify RoHS compliance status for the specific production batch before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this model when a high-pin-count, double-sided connection is required. The 0.100-inch pitch accommodates standard board layouts. Consider the operating temperature range and mechanical retention requirements of the application to ensure the through-hole termination method meets the structural integrity needs of the assembly.

Edgeboard Connectors Part Context

This component belongs to the EDAC 895 High Temperature Series, designed for applications exceeding standard thermal limits. The series offers various position counts and termination styles, providing engineers with scalable connectivity solutions for complex electronic assemblies requiring durable performance.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 895 Series cross-reference documentation for direct substitutes. Verify that alternative parts match the 120-position count, 2.54mm pitch, and dual-edge female configuration to maintain mechanical and electrical interface compatibility.
