896-054-521-812

Edgeboard Connectors Overview

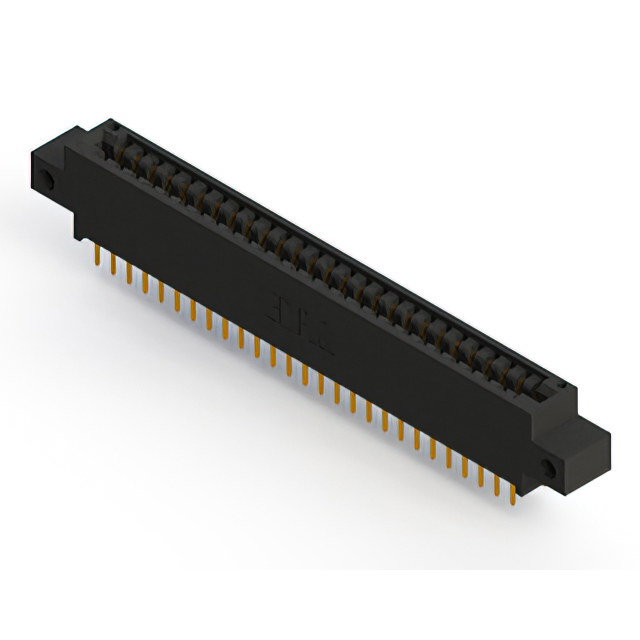

The EDAC Inc. 896-054-521-812 is a high-temperature standard card edge connector receptacle designed for robust electronic interconnections. It features 54 positions with a dual-edge configuration and a 3.18 mm (0.125 inch) pitch. The connector utilizes gold-plated contacts to ensure reliable signal transmission in demanding environments. It supports a board thickness of 1.57 mm and employs wire wrap termination for secure mounting. This component is engineered for vertical panel mount installation, providing stability and durability for applications requiring high thermal resistance.

Edgeboard Connectors Feature Summary

• High-temperature design suitable for demanding operational environments
• Dual-edge contact configuration for enhanced connectivity
• Gold-plated contacts ensuring reliable signal integrity
• Vertical panel mount style for stable structural integration

Edgeboard Connectors Applications

• Medical interconnect solutions
• Agricultural technology equipment
• Harsh environment industrial systems

Edgeboard Connectors Procurement Notes

Verify the specific datasheet version and RoHS compliance status directly with the manufacturer or authorized distributor before procurement. Confirm that the dual-edge specification aligns with the target PCB design requirements. Ensure that the high-temperature rating meets the operational thermal constraints of the intended application environment. Cross-reference the pin count and pitch dimensions to prevent mechanical incompatibility during assembly.

Edgeboard Connectors Selection Notes

Select this component when high-temperature resilience and dual-edge connectivity are required for card edge applications. The 3.18 mm pitch accommodates specific spacing needs distinct from standard 2.54 mm designs. Verify compatibility with wire wrap termination processes and panel mount constraints. Consider the vertical orientation and housing material properties for environmental protection against dust and moisture in agricultural or medical settings.

Edgeboard Connectors Part Context

This part belongs to the EDAC 896 series, which specializes in high-temperature card edge connectors. The series is characterized by durable construction and reliable performance in challenging conditions. EDAC provides comprehensive interconnect solutions tailored for specialized sectors such as medical devices and agricultural machinery, emphasizing longevity and consistent electrical performance under stress.

Edgeboard Connectors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify exact dimensional and electrical specifications before considering alternative models from other manufacturers.
