9185607324

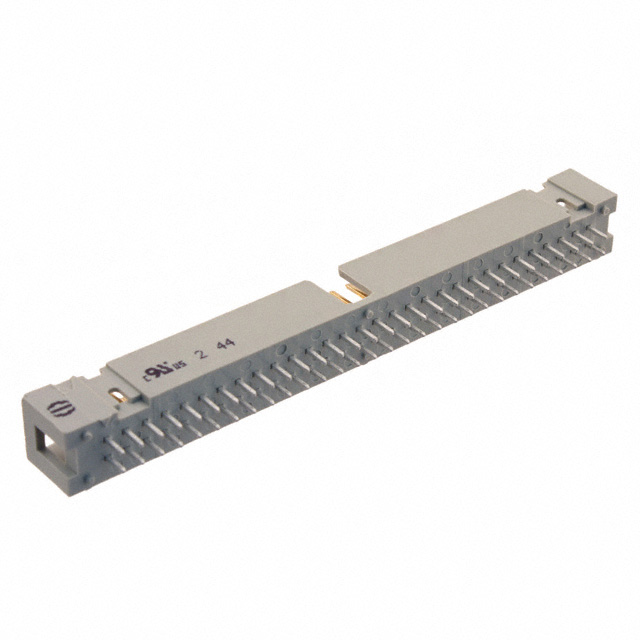

9185607324 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists HARTING. Its product description is CONN HEADER VERT 60POS 2.54MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 9185607324

• Description：CONN HEADER VERT 60POS 2.54MM
• Series：SEK
• Mfr：HARTING
• Package：Bulk
• Connector Type：Header
• Contact Type：Male Pin
• Pitch - Mating：0.100" (2.54mm)
• Number of Positions：60
• Number of Rows：2
• Row Spacing - Mating：0.100" (2.54mm)
• Number of Positions Loaded：All
• Style：Board to Cable/Wire
• Shrouding：Shrouded - 4 Wall
• Mounting Type：Through Hole
• Termination：Solder
• Fastening Type：Latch Holder
• Contact Length - Mating：0.242" (6.15mm)
• Contact Length - Post：0.114" (2.90mm)
• Overall Contact Length：-
• Insulation Height：0.350" (8.89mm)
• Contact Shape：Square
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：-
• Contact Finish - Post：Tin
• Contact Material：Copper Alloy
• Insulation Material：Polybutylene Terephthalate (PBT), Glass Filled
• Features：Keying Slot
• Operating Temperature：-55°C ~ 125°C
• Ingress Protection：-
• Material Flammability Rating：UL94 V-0
• Insulation Color：Gray
• Current Rating (Amps)：-
• Voltage Rating：-

Headers, Male Pins datasheet and documents for 9185607324
