93939-408HLF

Headers, Male Pins Overview

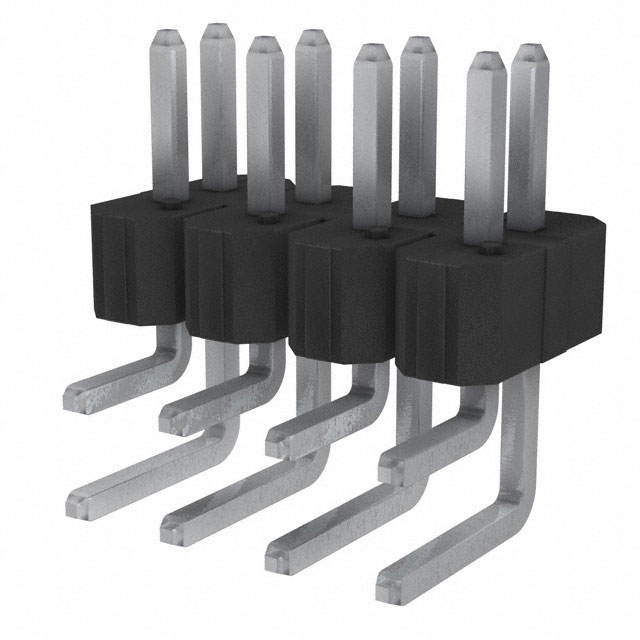

The 93939-408HLF is an unshrouded header manufactured by Amphenol ICC (FCI). It features a double row configuration with eight positions and a 2.54 mm pitch. Designed for through-hole termination, the connector utilizes tin-plated phosphor bronze contacts housed in a black thermoplastic body. The unit supports a current rating of 5 A and a voltage rating of 1.5 kV. Mating post length measures 5.84 mm, while the termination tail extends 3.05 mm. Operating temperatures range from -65°C to +130°C.

Headers, Male Pins Feature Summary

• Double-row unshrouded pin header design
• Through-hole solder pin termination style
• Tin-plated phosphor bronze contact material
• Thermoplastic housing with black coloration

Headers, Male Pins Applications

• Board-to-board interconnection
• General electronic circuit assembly
• Industrial control systems

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against official Amphenol documentation to ensure correct contact plating and housing material specifications. Confirm RoHS compliance status directly with the manufacturer or authorized distributors prior to procurement. Ensure that the selected component matches the required through-hole mounting orientation and pitch dimensions for the target PCB layout.

Headers, Male Pins Selection Notes

Select this component when a standard 2.54 mm pitch double-row header is required for board-to-board connections. Consider the 5 A current rating and 1.5 kV voltage rating for appropriate electrical isolation requirements. Verify that the straight mounting angle and unshrouded design align with the mechanical constraints of the enclosure and mating connector interface.

Headers, Male Pins Part Context

This part belongs to the Amphenol FCI headers and wire housings product category. It is classified as an unshrouded header designed for reliable signal and power transmission. The component is part of a broader family of connectors utilized in various industrial and commercial electronic applications requiring robust interconnect solutions.

Headers, Male Pins Replacement Considerations

Consult official Amphenol cross-reference documents for verified substitute part numbers. Do not assume compatibility based on generic pitch or position counts alone. Verify mechanical fit and electrical ratings before substituting.
