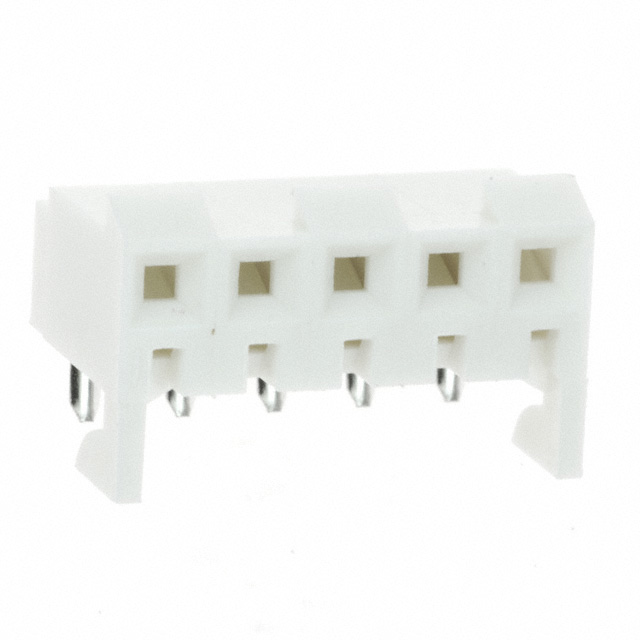

9481054

9481054 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Molex. Its product description is CONN RCPT 5P 0.156 TIN EDGE MNT. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for 9481054

• Description：CONN RCPT 5P 0.156 TIN EDGE MNT
• Series：KK396, 41815
• Mfr：Molex
• Package：Tray
• Connector Type：Receptacle
• Contact Type：Female Socket
• Style：Board to Board or Cable
• Number of Positions：5
• Number of Positions Loaded：All
• Pitch - Mating：0.156" (3.96mm)
• Number of Rows：1
• Row Spacing - Mating：-
• Mounting Type：Board Edge, Through Hole, Right Angle
• Termination：Solder
• Fastening Type：Locking Ramp
• Contact Finish - Mating：Tin
• Contact Finish Thickness - Mating：60.0µin (1.52µm)
• Insulation Color：Natural
• Insulation Height：0.308" (7.82mm)
• Contact Length - Post：0.145" (3.68mm)
• Operating Temperature：-40°C ~ 105°C
• Material Flammability Rating：UL94 V-0
• Contact Finish - Post：Tin
• Mated Stacking Heights：-
• Ingress Protection：-
• Features：Board Hooks
• Current Rating (Amps)：5A
• Voltage Rating：600V

Headers, Receptacles, Female Sockets datasheet and documents for 9481054
