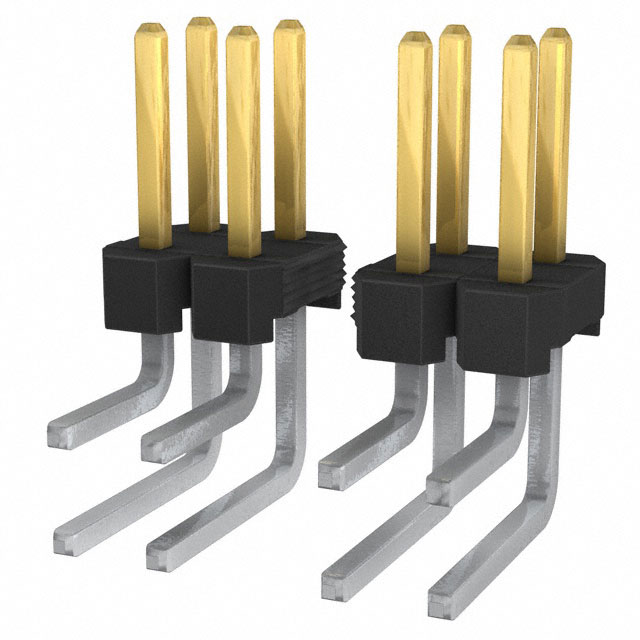

951238-7622-AR

951238-7622-AR is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists 3M. Its product description is CONN HEADER R/A 38POS 2MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 951238-7622-AR

• Description：CONN HEADER R/A 38POS 2MM
• Series：951
• Mfr：3M
• Package：Bulk
• Connector Type：Header
• Contact Type：Male Pin
• Pitch - Mating：0.079" (2.00mm)
• Number of Positions：38
• Number of Rows：2
• Row Spacing - Mating：0.079" (2.00mm)
• Number of Positions Loaded：All
• Style：Board to Board
• Shrouding：Unshrouded
• Mounting Type：Through Hole, Right Angle
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Length - Mating：0.173" (4.40mm)
• Contact Length - Post：0.110" (2.79mm)
• Overall Contact Length：-
• Insulation Height：0.157" (4.00mm)
• Contact Shape：Square
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：Flash
• Contact Finish - Post：Tin
• Contact Material：Copper Alloy
• Insulation Material：Thermoplastic
• Features：-
• Operating Temperature：-55°C ~ 125°C
• Ingress Protection：-
• Material Flammability Rating：UL94 V-0
• Insulation Color：Black
• Current Rating (Amps)：1A
• Voltage Rating：-

Headers, Male Pins datasheet and documents for 951238-7622-AR
