Product Detailed Parameters

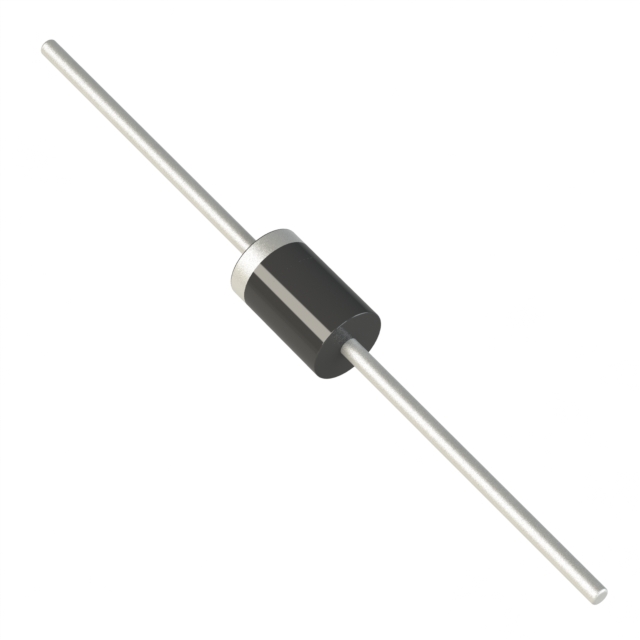

- Description：DIODE SCHOTTKY 15V 9A DO201AD
- Series：-
- Mfr：SMC Diode Solutions
- Package：Cut Tape (CT),Tape & Box (TB)
- Technology：Schottky
- Voltage - DC Reverse (Vr) (Max)：15 V
- Current - Average Rectified (Io)：9A
- Voltage - Forward (Vf) (Max) @ If：340 mV @ 9 A
- Speed：Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr)：-
- Current - Reverse Leakage @ Vr：-
- Capacitance @ Vr, F：1300pF @ 5V, 1MHz
- Mounting Type：Through Hole
- Package / Case：DO-201AD, Axial
- Supplier Device Package：DO-201AD
- Operating Temperature - Junction：-55°C ~ 125°C
- Grade：-
- Qualification：-
Download product information
Overview
The 95SQ015 is a Schottky rectifier manufactured by SMC Diode Solutions, housed in the DO-201AD axial through-hole package. It features a maximum repetitive reverse voltage of 15 V and an average forward rectified current of 9 A. The device exhibits a low forward voltage drop of 340 mV at 9 A and a maximum reverse leakage current of 1 mA at rated voltage. It supports junction temperatures up to 150°C, with extended operation to 125°C for voltages below 5 V.
Feature Summary
- Optimized for ultralow forward voltage drop to enhance efficiency in parallel power OR-ing applications
- High purity, high temperature epoxy encapsulation providing enhanced mechanical strength and moisture resistance
- Fast recovery characteristics suitable for high-speed switching operations
Applications
- Parallel power OR-ing circuits
- High-speed switching applications
- General purpose rectification in power supplies
Procurement Notes
Verify the specific datasheet version from SMC Diode Solutions or authorized distributors to confirm exact electrical limits and thermal characteristics. Ensure the DO-201AD axial leaded package matches your PCB footprint requirements. Cross-reference pinout and marking codes against official documentation to prevent installation errors.
Selection Notes
Select this component when low forward voltage drop is critical for system efficiency, particularly in OR-ing configurations. The 9 A current rating and 15 V blocking voltage define its operational envelope. Consider the DO-201AD package size for through-hole assembly constraints and verify thermal management capabilities for the intended operating environment.
Part Context
SMC Diode Solutions specializes in discrete semiconductors, including Schottky rectifiers and MOSFETs. The 95SQ015 belongs to their axial leaded Schottky series, designed for robust performance in industrial and consumer electronics. The company emphasizes high reliability and optimized electrical parameters for power management applications.
Replacement Considerations
Consult official substitution guides for equivalent Schottky diodes with matching 15 V/9 A ratings and DO-201AD packages. Verify that any alternative part maintains comparable forward voltage and reverse leakage specifications to ensure circuit compatibility.
