98414-G08-12ULF

Headers, Male Pins Overview

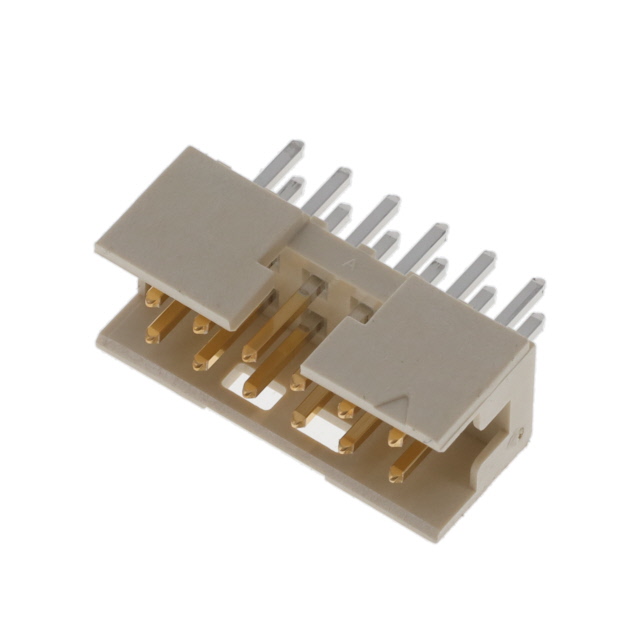

The Amphenol ICC (FCI) 98414-G08-12ULF is a Minitek board connector featuring 12 positions in a dual-row male configuration. It utilizes a 0.079-inch (2.00mm) pitch with solder terminals for through-hole mounting. The unit incorporates a cream-colored thermoplastic housing and copper alloy contacts with gold plating. Rated for 2A current and 200V voltage, it operates within a temperature range of -40°C to +125°C and provides 1 GOhm insulation resistance.

Headers, Male Pins Feature Summary

• Dual-row male header design for board-to-board or wire-to-board connections
• Through-hole solder termination for secure PCB attachment
• Gold-plated copper alloy contacts ensuring reliable conductivity
• Thermoplastic insulator providing structural integrity

Headers, Male Pins Applications

• Wire-to-board interconnections
• Board-to-board signal transmission
• General electronic equipment internal wiring

Headers, Male Pins Procurement Notes

Verify the specific suffix 'ULF' indicates lead-free compliance as per manufacturer standards. Confirm that the 12-position count matches the required circuit density. Ensure the through-hole mounting style aligns with the target PCB layout. Check for any RoHS directive adherence requirements relevant to the final assembly destination.

Headers, Male Pins Selection Notes

Select this component when a 2.00mm pitch male header is required for low-current applications up to 2A. The dual-row arrangement suits space-constrained designs needing higher pin counts. Consider the operating temperature range and voltage rating against system specifications. Verify compatibility with mating receptacles from the same Minitek series.

Headers, Male Pins Part Context

This part belongs to the Amphenol Minitek family of 2.00mm pitch connectors. The series offers various row configurations and contact counts for diverse electronic needs. As a male header, it pairs with female sockets or edge cards. The product line emphasizes compact form factors for modern electronics manufacturing.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other 12-position, 2.00mm pitch male headers from Amphenol FCI. Cross-reference dimensions and terminal styles before substitution. Ensure equivalent electrical ratings and material compositions are maintained.
