9C-8.000MAAJ-T

Crystals Overview

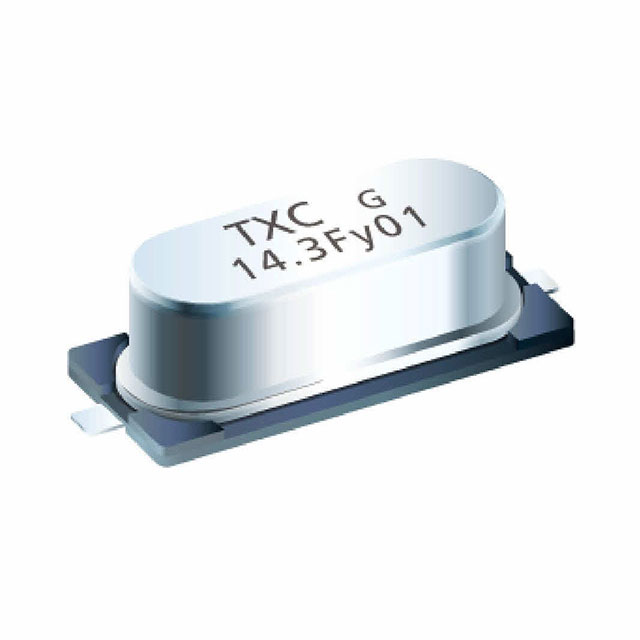

The TXC Corporation 9C-8.000MAAJ-T is a surface-mount quartz crystal resonator operating at a nominal frequency of 8 MHz. It features a parallel fundamental mode with an 18 pF load capacitance and a frequency tolerance of 30 ppm. The device operates within a temperature range of -20°C to +70°C and supports a maximum drive level of 1 µW. Packaged in an HC-49S SMD metal can format measuring 11.4 mm x 4.8 mm x 3.8 mm, it exhibits a series resistance of 80 Ω and an aging rate of 5 PPM per year.

Crystals Feature Summary

• Surface-mount construction utilizing an HC-49S metal can package for robust physical protection
• Parallel fundamental oscillation mode designed for standard circuit integration
• Compliant with RoHS directives and lead-free manufacturing standards

Crystals Applications

• General-purpose digital timing circuits requiring stable clock references
• Microcontroller and microprocessor system clock generation
• Consumer electronics devices operating within commercial temperature ranges

Crystals Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to ensure compatibility with required load capacitance and frequency tolerance specifications. Confirm that the HC-49S SMD footprint matches the target PCB design constraints. Ensure supply chain sources provide valid documentation regarding RoHS compliance and material composition certificates prior to final procurement authorization.

Crystals Selection Notes

Select this component when a durable metal-can surface-mount crystal is required for 8 MHz applications. The 18 pF load capacitance must align with the oscillator circuit design parameters. Consider the 80 Ω series resistance and 1 µW drive level limits to prevent over-driving the crystal. Verify that the -20°C to +70°C operating range satisfies the environmental conditions of the intended application environment.

Crystals Part Context

This part belongs to the TXC 9C series of surface-mount quartz crystals. It utilizes the widely adopted HC-49S form factor adapted for surface mounting, offering a balance between mechanical stability and compact board space. The series is designed for general electronic applications where reliable frequency control is essential without the need for specialized automotive or industrial certifications.

Crystals Replacement Considerations

Direct substitutes include other manufacturers' HC-49S SMD crystals with identical 8 MHz frequency, 18 pF load capacitance, and 30 ppm tolerance. Verify pin compatibility and physical dimensions before substitution. Cross-reference electrical characteristics such as ESR and drive level sensitivity to ensure circuit performance remains unaffected.
