A10R108GVNK

Overview

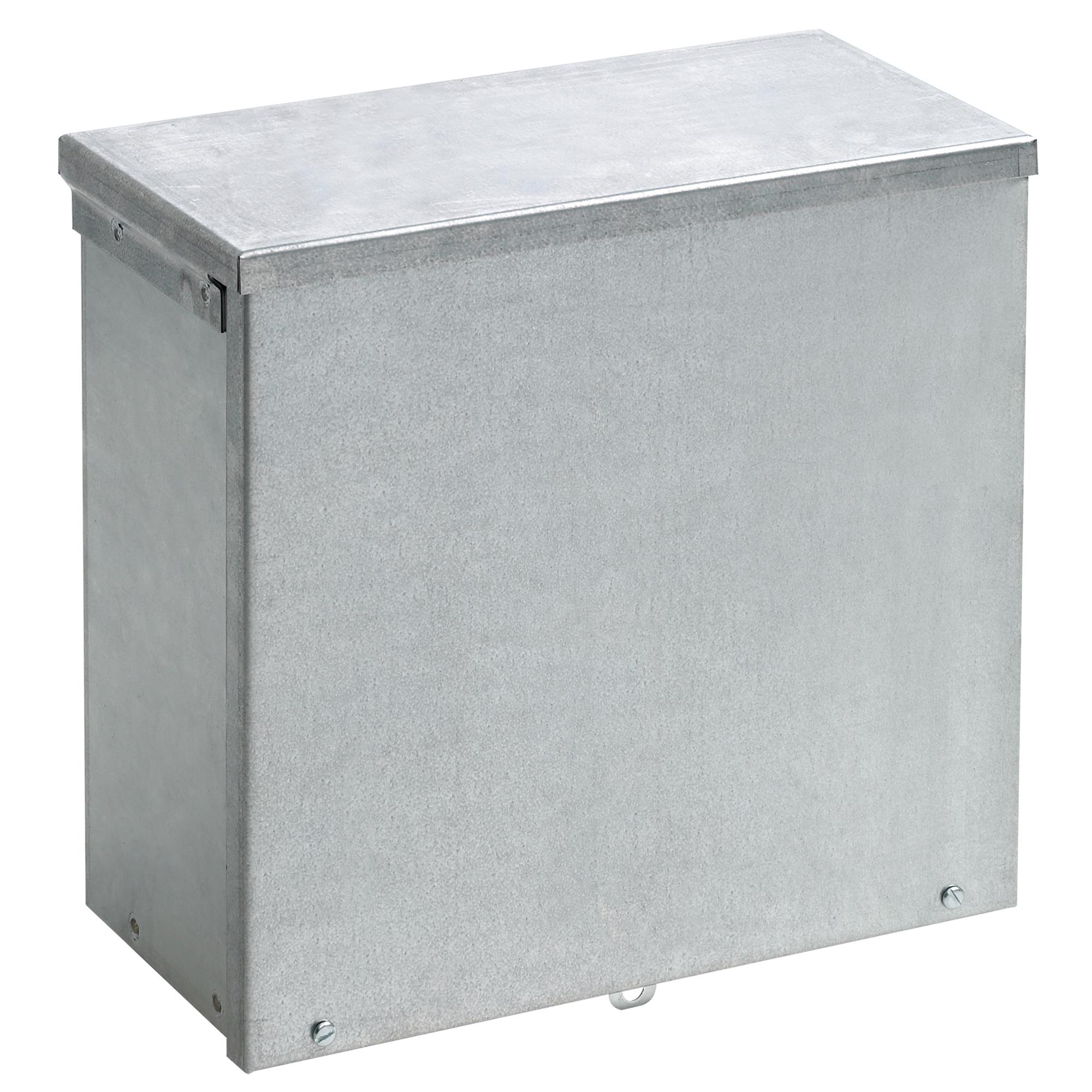

The A10R108GVNK is a Type 3R screw-cover electrical enclosure manufactured by Hoffman Enclosures, Inc. Constructed from 16-gauge steel with a galvanized finish, it features an unflanged design measuring 10 inches in height, 10 inches in width, and 8 inches in depth. The unit includes a drip shield top and seam-free sides, front, and back to protect against rain, snow, or sleet. It utilizes a slip-on door mechanism secured by screws.

Feature Summary

• Seam-free construction on sides, front, and back for enhanced environmental protection
• Integrated drip shield top to prevent water ingress
• Galvanized steel material for corrosion resistance
• Slip-on door design with screw cover attachment

Applications

• Outdoor electrical equipment housing
• Industrial control panel enclosures
• Utility infrastructure protection
• Weather-exposed mechanical installations

Procurement Notes

Verify the specific gauge thickness and dimensional tolerances against project requirements before ordering. Confirm that the galvanized finish meets local environmental exposure standards. Ensure the slip-on door mechanism aligns with required access frequencies. Check compatibility with internal mounting hardware and cable entries. Validate UL 50/50E and CSA C22.2 approvals for intended regional compliance.

Selection Notes

Select this model when outdoor weather protection is required without flange mounting. The 16-gauge steel provides structural rigidity for standard industrial loads. Consider the slip-on door for frequent access needs compared to hinged alternatives. Evaluate the 10x10x8 inch volume against component density requirements. Ensure the galvanized coating suits the specific chemical or atmospheric conditions of the installation site.

Part Context

This component belongs to the nVent HOFFMAN Type 3R, 4, and 4X enclosure family. It is designed for general-purpose outdoor use where protection against falling rain and sleet is necessary. The product line emphasizes durability through steel construction and standardized dimensions for easy integration into existing industrial frameworks.

Replacement Considerations

No direct public substitute part numbers are confirmed in the provided documentation. Verify dimensional compatibility if considering alternative manufacturers. Ensure equivalent NEMA 3R rating and material specifications are maintained during substitution.
