A10R86HCR

Overview

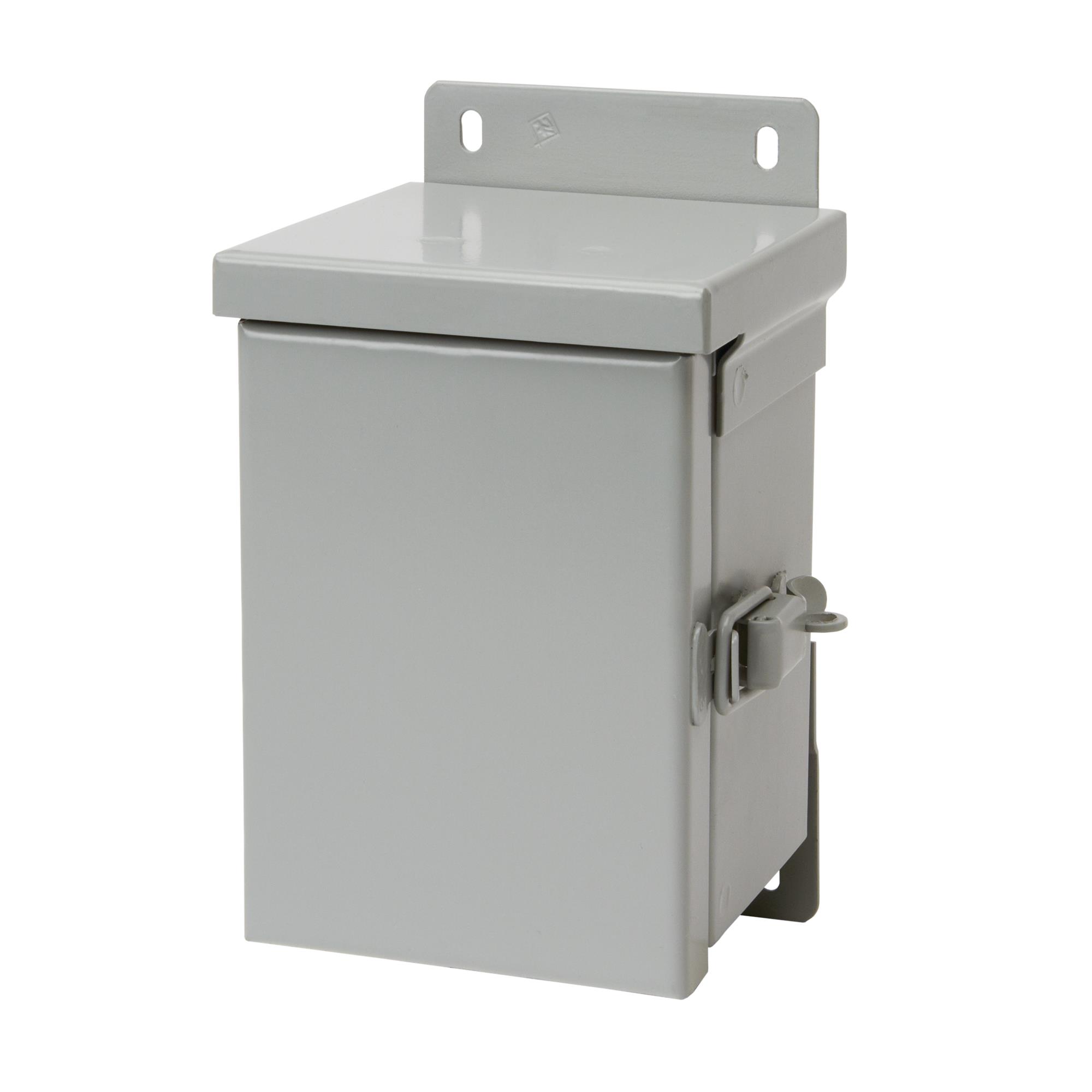

The A10R86HCR is a wall-mounted steel enclosure manufactured by Hoffman Enclosures, Inc. It features a hinged cover with an integrated small drip shield for outdoor protection against rain and sleet. The unit measures 10 inches in height, 8 inches in width, and 6 inches in depth. Constructed from painted mild steel, it provides Type 3R ingress protection. The enclosure includes a solid cover design suitable for housing electrical components in environments requiring weather resistance.

Feature Summary

• Integrated small drip shield protects internal wiring from precipitation
• Hinged cover design allows for convenient access to interior components
• Constructed from painted mild steel for structural durability
• Wall-mount configuration facilitates secure installation on vertical surfaces

Applications

• Outdoor electrical component housing
• Wiring protection in rain or sleet environments
• Industrial control panel enclosures
• Utility infrastructure installations

Procurement Notes

Verify the specific model designation A10R86HCR against official manufacturer catalogs to confirm dimensional accuracy and material specifications. Ensure that the required ingress protection rating aligns with environmental exposure conditions. Cross-reference mounting hardware requirements separately as accessories may not be included. Confirm compliance with relevant safety standards for the intended application environment before procurement.

Selection Notes

Select this model when outdoor weather protection is required alongside standard wall-mount accessibility. The Type 3R rating addresses rain and sleet but does not provide dust-tight sealing. Consider the internal volume of 480 cubic inches for component fitment. Evaluate if additional gaskets or seals are necessary for enhanced protection beyond the standard drip shield configuration.

Part Context

This part belongs to the Small Drip-Shield Hinged-Cover series designed for basic outdoor protection. It complements other Hoffman Enclosures products like the A8R86HCR which offers similar features with different dimensions. The series focuses on cost-effective solutions for protecting electrical systems from common weather elements without requiring complex sealing mechanisms.

Replacement Considerations

The A8R86HCR serves as a confirmed substitute option within the same product family, offering identical functional characteristics with an 8-inch by 8-inch footprint instead of the 10-inch by 8-inch configuration. Both models share the same Type 3R rating and hinged cover design.
