A12126T1PP

Overview

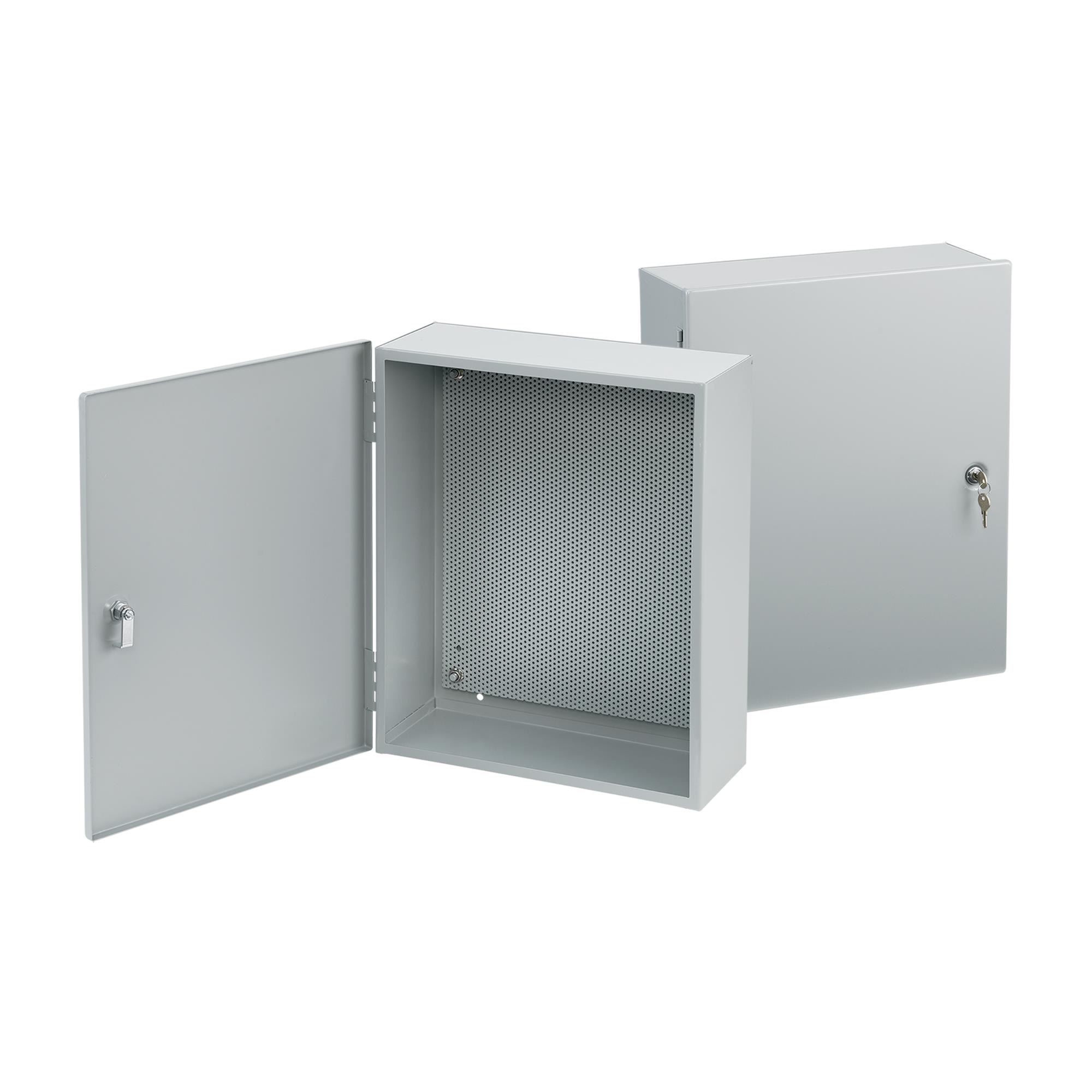

The Hoffman A12126T1PP is a Type 1 control enclosure constructed from steel with an ANSI 61 gray polyester powder-coated finish. It features a hinged cover and includes a pre-installed perforated panel designed to accept self-tapping screws, eliminating the need for measuring, marking, or drilling during component mounting. The unit measures 12 inches in width, 12 inches in height, and 6 inches in depth. It is rated UL 50/50E, CUL, and CSA C22.2.

Feature Summary

• Pre-installed perforated panel accepts self-tapping screws to eliminate measuring, marking, and drilling requirements
• Hinged cover design with flush latch operable by screwdriver or coin
• Weldnuts provided on the interior back wall for secure component mounting

Applications

• Industrial control panels requiring NEMA Type 1 protection
• Electrical equipment housing where rapid component installation is prioritized
• Enclosures for machinery control systems in dry indoor environments

Procurement Notes

Verify that the required certifications (UL 50/50E, CUL, CSA) meet specific project compliance standards. Confirm that the internal dimensions accommodate all planned components with adequate clearance. Ensure the steel construction and powder-coated finish are suitable for the intended environmental conditions. Check that the included perforated panel meets the mounting density requirements for the specific application.

Selection Notes

Select this model when a standard Type 1 enclosure with integrated mounting convenience is required. The pre-drilled panel simplifies assembly compared to blank enclosures. Consider the 12x12x6 inch footprint against available space. Verify that the steel gauge and corrosion resistance align with operational demands. This model is suitable for general industrial use but lacks weatherproofing for outdoor exposure.

Part Context

This product belongs to the Hoffman A1 series of integrated panel enclosures. These units are designed for straightforward installation in industrial settings. The A12126T1PP specifically combines a standard NEMA Type 1 form factor with a ready-to-use mounting surface. It represents a solution for applications needing basic environmental protection without complex customization.

Replacement Considerations

Direct replacements must match the 12x12x6 inch dimensions and Type 1 rating. Enclosures with similar perforated panels simplify retrofitting. Verify that alternative models offer compatible weldnut spacing and latch mechanisms. Ensure substitute units maintain equivalent UL and CSA approvals for regulatory continuity.
