A203012BGECT

Overview

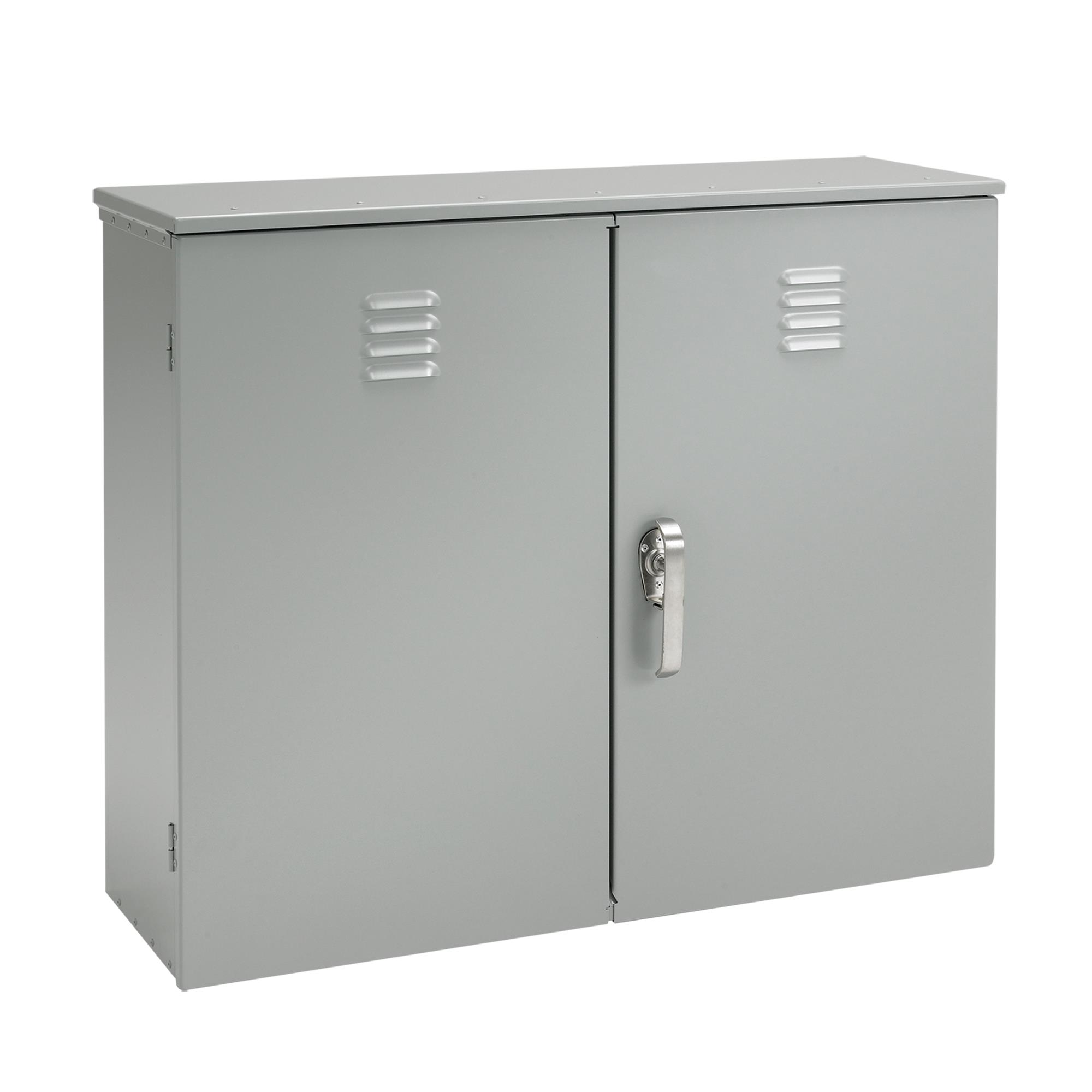

The A203012BGECT is a wall-mounted metallic enclosure manufactured by Hoffman Enclosures, Inc. It belongs to the CT cabinet vented double-door Type 3R series. The unit features a gray steel construction with dimensions of 20.00 inches in height, 30.00 inches in width, and 12.00 inches in depth (508.00mm x 762.00mm x 304.80mm). Designed for outdoor or harsh environments, it provides protection against falling rain, sleet, snow, and external ice formation on the equipment.

Feature Summary

• Double-door design for accessible installation and maintenance
• Vented structure to facilitate heat dissipation
• Type 3R rating for weather resistance

Applications

• Protection of instrument current transformers
• Outdoor electrical component housing
• Wall-mounted utility installations

Procurement Notes

Verify the specific suffix 'BGECT' matches the required vented double-door configuration and Type 3R rating. Confirm material specifications are gray steel as indicated. Ensure the physical dimensions align with the mounting space requirements before ordering.

Selection Notes

Select this model when dual access is required for internal components alongside passive ventilation needs. It is suitable for applications where environmental exposure necessitates Type 3R compliance but active cooling is not mandated.

Part Context

This part is part of the nVent HOFFMAN CT cabinet series, specifically engineered for current transformer protection. It complements other Hoffman enclosures by offering specialized weather-resistant housing with enhanced accessibility through its double-door architecture.

Replacement Considerations

No direct public substitute part numbers are confirmed for this specific variant.
