A20SA2210LPPL

Overview

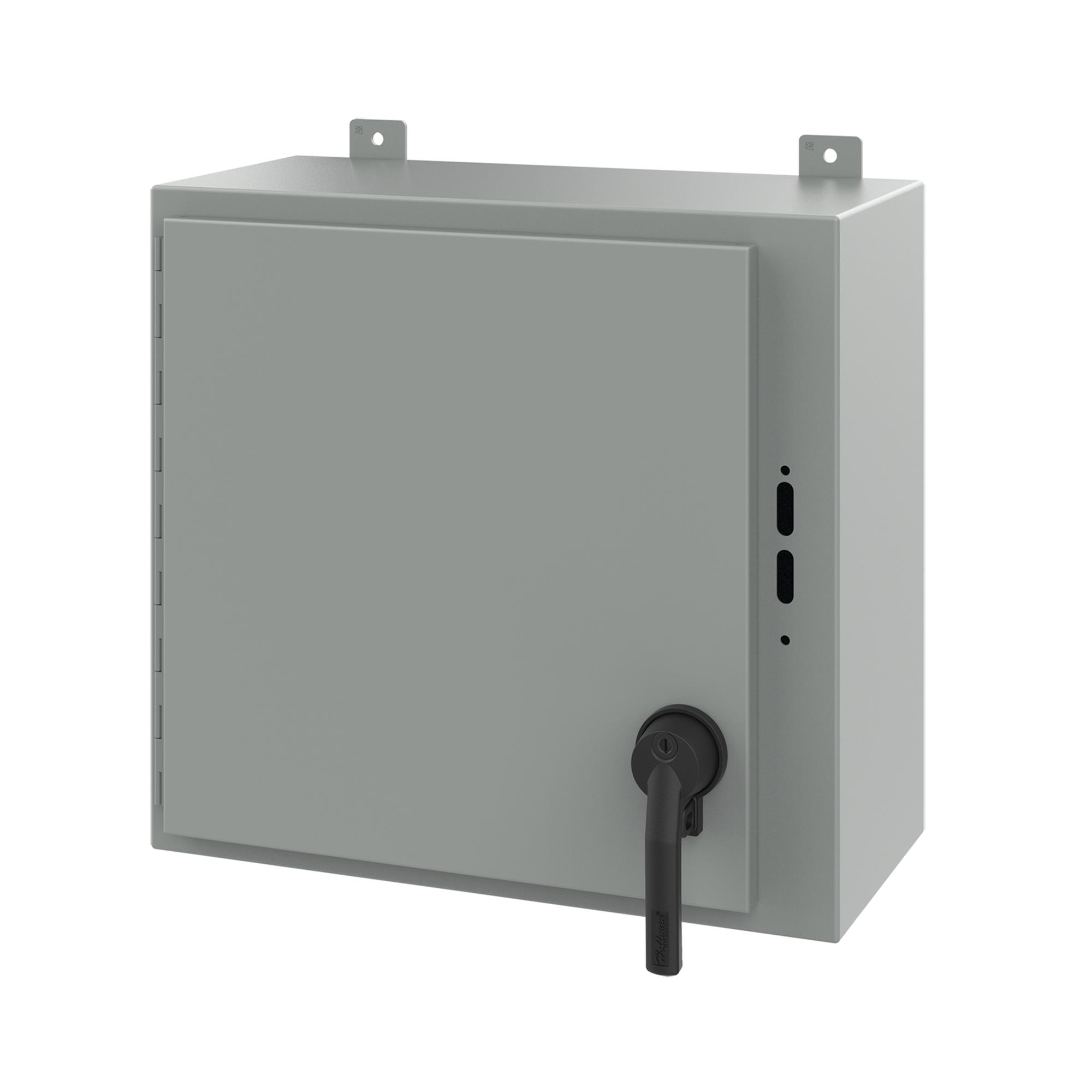

The A20SA2210LPPL is a Type 12 disconnect enclosure manufactured by Hoffman Enclosures, Inc. Constructed from mild steel with a polyester powder coated exterior finish in ANSI 61 color code, it features a white interior. The unit measures 20 inches in length, 21.38 inches in width, and 10 inches in depth. It is designed for wall mounting and includes a single door with a continuous hinge and an easy-access handle for visual ON/OFF indication. The enclosure holds NEMA 12/13 ratings and IP65 protection.

Feature Summary

• Provides visual ON or OFF indication via an integrated easy-access handle
• Accepts major brand disconnect switches and circuit breakers
• Constructed from mild steel with polyester powder coated exterior

Applications

• Wall mount installation for electrical disconnects
• Housing circuit breakers and disconnect switches
• Industrial environments requiring NEMA 12/13 protection

Procurement Notes

Verify the specific manufacturer part number against official nVent HOFFMAN documentation to confirm compatibility with intended switch brands. Ensure the required cutout dimensions match the Preferred Cutout specifications. Confirm that the ANSI 61 exterior color code meets facility standards. Check for availability of associated accessories such as internal mounting plates if not included.

Selection Notes

Select this model when a dedicated disconnect enclosure with visual status indication is required. The 20 x 21.38 x 10 inch size accommodates standard industrial disconnect switches. The Type 12 rating makes it suitable for indoor use where dust and light splashing water are concerns. Verify that the mild steel construction and powder coating are sufficient for the environmental conditions.

Part Context

This component belongs to the Hoffman Enclosures family of general purpose disconnect enclosures. It is part of the SA series designed specifically for disconnect applications. The product line emphasizes safety through visual indication and compatibility with major switch manufacturers. It serves as a protective housing for electrical isolation components in industrial control panels.

Replacement Considerations

Consult official nVent HOFFMAN substitution guides for equivalent models. Verify dimensional compatibility with existing panel cutouts. Ensure replacement units maintain the same NEMA 12/13 and IP65 ratings. Confirm material composition and finish requirements for corrosion resistance.
