A302010LP

Overview

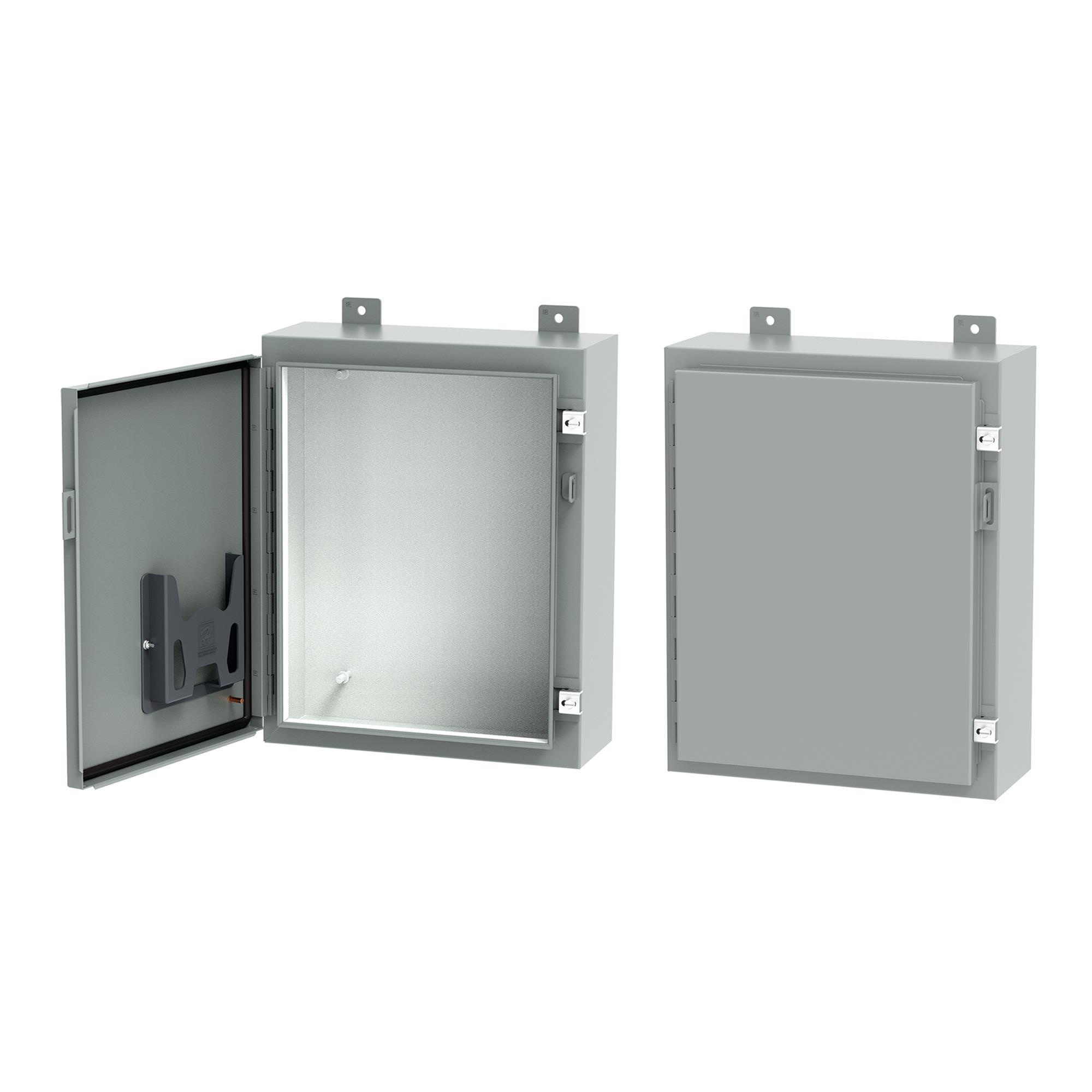

The Hoffman Enclosures A302010LP is a wall-mount enclosure constructed from 14-gauge mild steel. It measures 30 inches in length, 20 inches in width, and 10 inches in depth. The unit features a solid cover with a continuous hinge and clamp mechanism. Exterior surfaces are finished in ANSI 61 Gray, while the interior is painted white. The enclosure provides NEMA Type 12/13 and IP65 protection ratings against dust, dripping liquids, and oil. External wall-mounting brackets are included for installation.

Feature Summary

• Continuous hinge design with clamp locking mechanism
• Seams continuously welded and ground smooth
• ANSI 61 Gray exterior finish with white interior coating
• External wall-mounting brackets included

Applications

• Industrial control panel housing
• Electrical equipment protection
• Wall-mounted system integration

Procurement Notes

Verify that the specific order matches the A302010LP part number to ensure correct dimensions and material specifications. Confirm that the required protection rating aligns with the NEMA 12/13 and IP65 classification documented for this model. Ensure compatibility with existing mounting infrastructure before procurement.

Selection Notes

Select this model when a rigid, welded steel enclosure is required for environments exposing equipment to dust and non-corrosive liquids. The 14-gauge thickness offers structural durability. Verify that the 30x20x10 inch footprint accommodates internal components and that wall-mounting capabilities suit the installation site constraints.

Part Context

This component belongs to the Hoffman LP series of wall-mount enclosures. It is designed for industrial applications requiring robust physical protection. The product line emphasizes durable steel construction with standardized mounting configurations. It serves as a protective barrier for sensitive electronic and electrical hardware in manufacturing and utility settings.

Replacement Considerations

No public substitute part numbers are confirmed for this specific model.

FAQ

What is the material gauge of the A302010LP enclosure?

The enclosure body is constructed from 14-gauge mild steel.

Does the enclosure include mounting hardware?

Yes, external wall-mounting brackets are included with the unit.
