A84XN7324FSLP

Overview

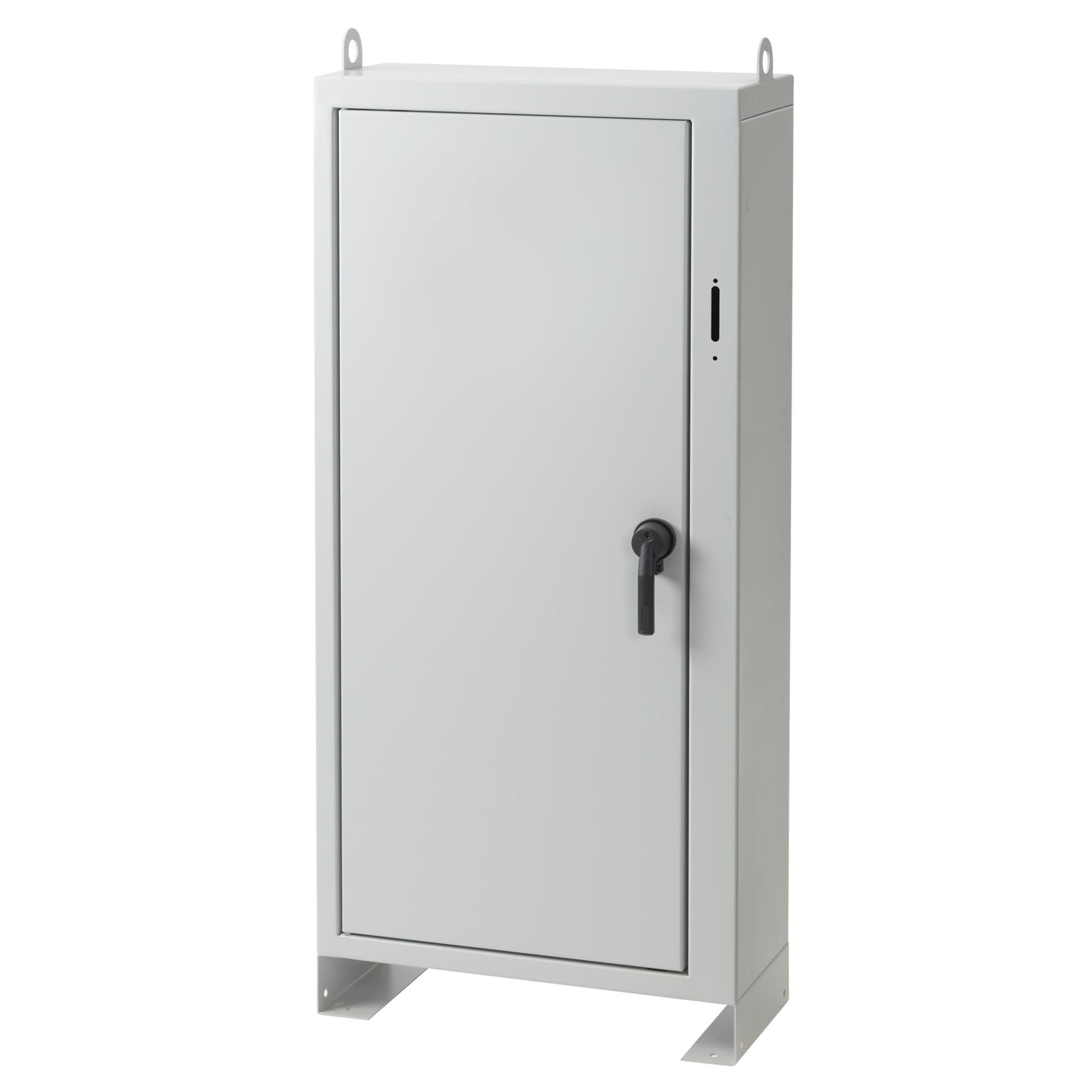

The Hoffman A84XN7324FSLP is a free-standing disconnect enclosure constructed from steel with a polyester powder-coated finish in RAL 7035 light gray. It measures 84 inches in height, 73 inches in width, and 24 inches in depth. The unit features a 14-gauge steel body and includes a 4-inch high 10-gauge steel integral lifting base. It utilizes a three-point latch mechanism and incorporates a modified preferred disconnect cutout. The internal usable height is four inches less than the nominal exterior height.

Feature Summary

• Free-standing industrial design for standalone installation
• Three-point latch system for secure door closure
• Integrated heavy-duty lifting base for structural support
• Modified preferred disconnect cutout configuration

Applications

• Industrial electrical equipment housing
• Disconnect switch installations
• Control panel enclosures
• Power distribution units

Procurement Notes

Verify that the specific application requires a free-standing disconnect enclosure rather than a wall-mount variant. Confirm that the 84x73x24 inch dimensions fit the designated floor space. Ensure the site infrastructure can support the weight of the steel construction. Check that the modified disconnect cutout aligns with the intended switchgear specifications before finalizing the order.

Selection Notes

Select this model when a robust, floor-mounted solution is required for high-capacity disconnect applications. The 14-gauge steel provides durability for industrial environments. Consider the 84-inch height for accommodating tall components. The light gray finish offers standard industrial aesthetics. Verify clearance requirements around the enclosure for maintenance access and ventilation needs.

Part Context

This component belongs to the Hoffman large-type disconnect enclosure series designed for heavy-duty industrial use. It is part of a range offering heights from 60 to 84 inches. The product line emphasizes structural integrity through integrated lifting bases and standardized cutouts. It serves as a protective housing for critical electrical infrastructure in manufacturing and utility settings.

Replacement Considerations

No public confirmed substitute part numbers are available.
