AA2214ZGSK

$0.69

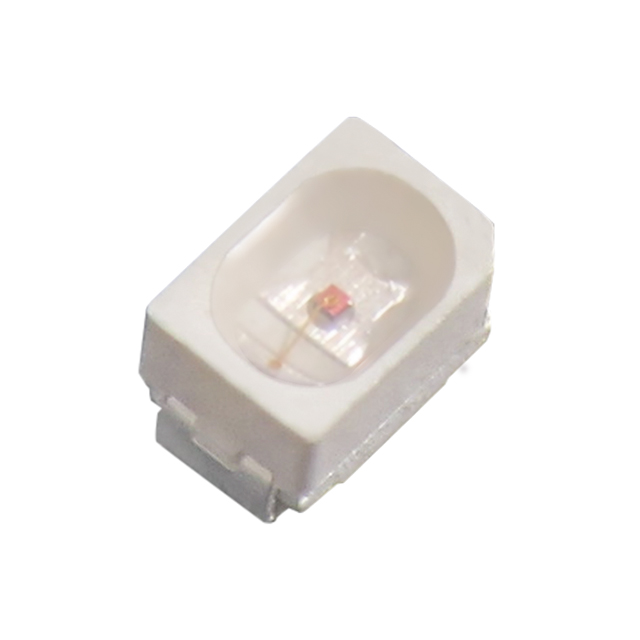

Description：LED GREEN CLEAR 2SMD
Series：-
Mfr：Kingbright
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:8d715872cc73 Category: LED Indication - Discrete Brand: Kingbright

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LED GREEN CLEAR 2SMD
Series：-
Mfr：Kingbright
Package：Tape & Reel (TR),Cut Tape (CT)
Color：Green
Configuration：Independent
Lens Color：Colorless
Lens Transparency：Clear
Millicandela Rating：650mcd
Lens Style：Oval with Flat Top
Lens Size：1.65mm x 1.15mm
Voltage - Forward (Vf) (Typ)：3.3V
Current - Test：20mA
Viewing Angle：120°
Mounting Type：Surface Mount
Wavelength - Dominant：525nm
Wavelength - Peak：515nm
Features：-
Package / Case：2-SMD, J-Lead
Supplier Device Package：2-SMD
Size / Dimension：2.00mm L x 1.40mm W
Height (Max)：1.40mm
Grade：-
Qualification：-

Download product information

AA2214ZGSK

Overview

The AA2214ZGSK is a single-color green surface-mount LED from Kingbright, designed for SMD/SMT installation. It features a water-clear oval lens with dimensions of 1.65 mm x 1.15 mm and a height of 1.3 mm. The component operates at a forward current of 20 mA with a forward voltage of 2.5 V, resulting in a power rating of 75 mW. It emits light at a peak wavelength of 570 nm with an optical intensity of 100 mcd. The viewing angle is 120 degrees, and it functions within a temperature range of -40°C to +85°C.

Feature Summary

Utilizes InGaN technology for efficient green light emission
Features a water-clear oval lens for consistent light transmission
Designed for high-visibility indicator applications with a wide 120-degree viewing angle

Applications

Equipment status indicators
Control panel illumination
Consumer electronics display backlighting

Procurement Notes

Verify the specific suffix ZGSK against the manufacturer's official datasheet to confirm lens type and binning specifications. Ensure compatibility with moisture sensitivity level requirements during storage and handling. Cross-reference the RoHS compliance status with current regulatory standards before finalizing procurement orders.

Selection Notes

Select this component when a compact 0805 footprint is required for green indication. Consider the 100 mcd intensity and 120-degree beam spread for visibility needs. Evaluate the 2.5 V forward voltage drop against circuit design constraints. Confirm thermal management capabilities for operation up to +85°C.

Part Context

This part belongs to the AA2214 series of single-color LEDs manufactured by Kingbright. The series offers various color options and lens configurations in a standard 0805 (2112 metric) package size. It is engineered for automated surface-mount assembly processes.

Replacement Considerations

Consult Kingbright's official substitution guide for direct equivalents. Verify pinout compatibility and electrical parameters such as forward voltage and current ratings before replacing.
