AA2735SURKMGS

$0.71

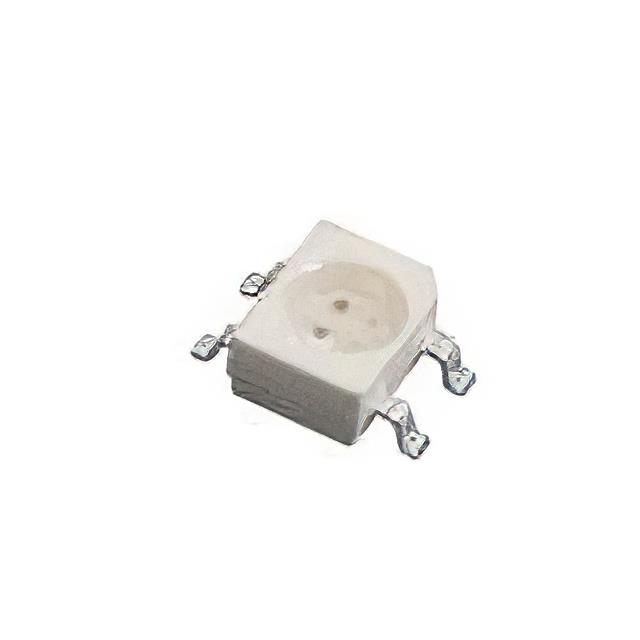

Description：LED GREEN/RED CLEAR 4SMD
Series：-
Mfr：Kingbright
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:fafd99d6b84b Category: LED Indication - Discrete Brand: Kingbright

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

AA2735SURKMGS is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Kingbright. Its product description is LED GREEN/RED CLEAR 4SMD. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for AA2735SURKMGS

Description：LED GREEN/RED CLEAR 4SMD
Series：-
Mfr：Kingbright
Package：Tape & Reel (TR),Cut Tape (CT)
Color：Green, Red
Configuration：Independent
Lens Color：Colorless
Lens Transparency：Clear
Millicandela Rating：70mcd Green, 300mcd Red
Lens Style：Round with Flat Top
Lens Size：2.30mm Dia
Voltage - Forward (Vf) (Typ)：2.1V Green, 1.95V Red
Current - Test：20mA Green, 20mA Red
Viewing Angle：120°
Mounting Type：Surface Mount
Wavelength - Dominant：570nm Green, 630nm Red
Wavelength - Peak：574nm Green, 645nm Red
Features：-
Package / Case：4-SMD, Gull Wing
Supplier Device Package：4-SMD
Size / Dimension：3.50mm L x 1.75mm W
Height (Max)：1.75mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for AA2735SURKMGS

AA2735SURKMGS

LED Indication - Discrete Overview

The AA2735SURKMGS is a dual-color surface-mount LED component manufactured by Kingbright. It features a PLCC-4 package with dimensions of 2.7mm x 3.5mm. The device emits red light at 630nm and green light at 570nm. Forward voltage specifications are 1.95V for the red element and 2.1V for the green element. The lens material is water clear, ensuring optimal light transmission. This component is designed for standard SMT assembly processes.

LED Indication - Discrete Feature Summary

Dual-color configuration combining red and green emission sources within a single compact package
Water clear lens design to maximize optical efficiency and visibility
Compatible with standard surface mount technology (SMT) assembly and soldering processes

LED Indication - Discrete Applications

Status indication in electronic control panels
Power state signaling in consumer electronics
Bi-color visual alerts in industrial equipment

LED Indication - Discrete Procurement Notes

Verify moisture sensitivity level requirements before storage and handling. Ensure proper anti-static precautions are taken during assembly due to electrostatic discharge sensitivity. Confirm packaging quantity aligns with production line needs. Check RoHS compliance status for environmental regulations. Validate pin configuration matches PCB footprint design.

LED Indication - Discrete Selection Notes

Choose this component when space-constrained dual-color indication is required. Consider the specific wavelength outputs for visibility requirements. Evaluate forward voltage drops against available drive circuitry. Assess package compatibility with existing manufacturing equipment. Review thermal management needs based on intended operating conditions.

LED Indication - Discrete Part Context

This part belongs to Kingbright's PLCC-4 series of surface-mount LEDs. These components are widely used in indicator applications where multiple colors are needed in a small form factor. The series offers various color combinations and lens types to suit different visual signaling needs across industries.
