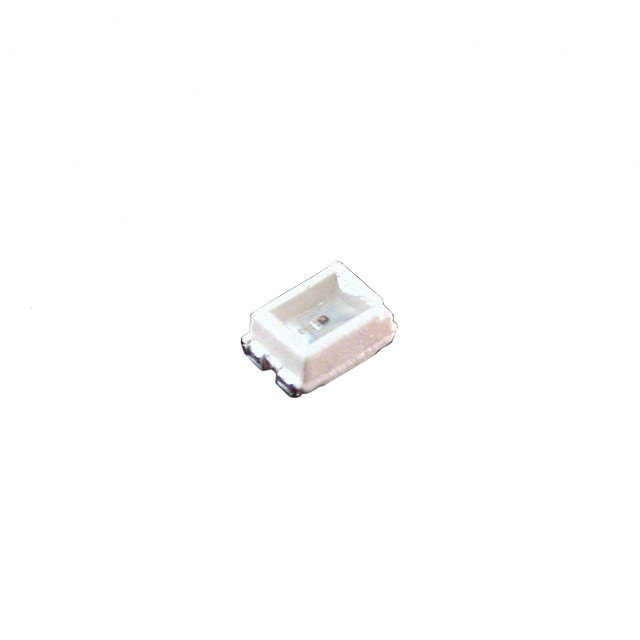

AA3020AEC

$0.38

Description：LED RED CLEAR SMD
Series：-
Mfr：Kingbright
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:279068d5e9ad Category: LED Indication - Discrete Brand: Kingbright

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

AA3020AEC is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Kingbright. Its product description is LED RED CLEAR SMD. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for AA3020AEC

Description：LED RED CLEAR SMD
Series：-
Mfr：Kingbright
Package：Tape & Reel (TR),Cut Tape (CT)
Color：Red
Configuration：Standard
Lens Color：Colorless
Lens Transparency：Clear
Millicandela Rating：20mcd
Lens Style：Rectangle with Flat Top
Lens Size：2.00mm x 1.40mm
Voltage - Forward (Vf) (Typ)：2V
Current - Test：20mA
Viewing Angle：90°
Mounting Type：Surface Mount
Wavelength - Dominant：625nm
Wavelength - Peak：627nm
Features：-
Package / Case：2-SMD, J-Lead
Supplier Device Package：SMD
Size / Dimension：2.70mm L x 2.00mm W
Height (Max)：1.65mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for AA3020AEC

AA3020AEC

LED Indication - Discrete Overview

The Kingbright AA3020AEC is a discontinued surface-mount indicator LED emitting red light at a peak wavelength of 627nm and dominant wavelength of 625nm. It features a water-clear rectangular lens with a 90-degree viewing angle. The component operates with a typical forward voltage of 2V at a test current of 20mA, producing a nominal luminous intensity of 20mcd. Its physical dimensions are 2.70mm in length, 2.00mm in width, and a maximum height of 1.65mm, housed in a 2-SMD J-lead package.

LED Indication - Discrete Feature Summary

Emits red light with a clear water lens for high visibility
Compact SMD form factor designed for space-constrained circuit boards
Standard J-lead configuration for reliable surface mounting

LED Indication - Discrete Applications

Electronic device status indicators
Control panel signal lamps
Power supply status indication

LED Indication - Discrete Procurement Notes

Verify the obsolete status of this component before integration into new designs. Confirm that the specific replacement part number meets all electrical and mechanical requirements. Ensure compliance with RoHS3 standards if required by the target application environment. Check moisture sensitivity level ratings for proper storage and handling procedures during assembly.

LED Indication - Discrete Selection Notes

Select this component only for legacy board maintenance or repair scenarios where exact footprint matching is critical. Evaluate alternative components from the same manufacturer family to ensure compatibility with existing PCB layouts. Consider thermal management and current limiting resistor values based on the specified forward voltage parameters.

LED Indication - Discrete Part Context

This part belongs to the Kingbright AA3020 series of single-color surface-mount LEDs. The series utilizes standard packaging dimensions suitable for automated pick-and-place manufacturing processes. It represents a common optoelectronic solution for general-purpose visual signaling in consumer and industrial electronics.
