AA3021VRCBS/A

LED Indication - Discrete Overview

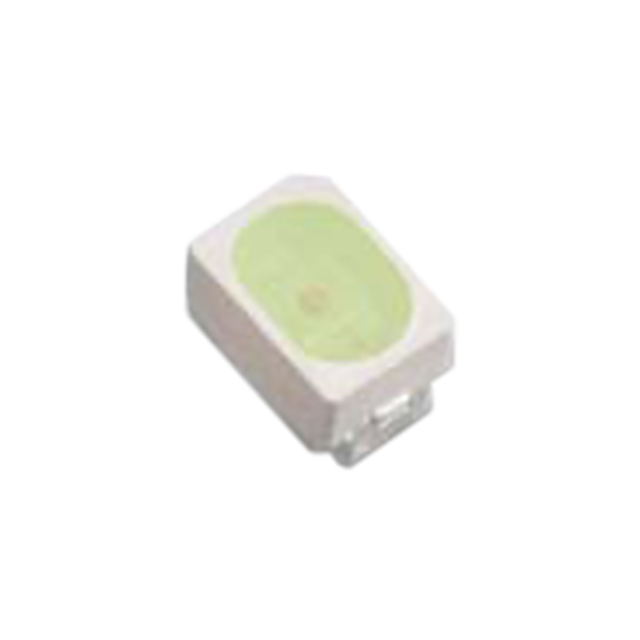

The AA3021VRCBS/A is a single-color surface-mount LED manufactured by Kingbright, emitting cyan light with a water-clear lens. It operates at a typical forward voltage of 3.3 V and a test current of 20 mA, consuming 120 mW of power. The component features a 125-degree viewing angle and delivers an optical intensity of 1600 mcd (1.6 cd). Its physical dimensions are 3.0 mm in length, 2.0 mm in width, and 1.3 mm in height, housed in a 1208 (3020 metric) package. It functions within a temperature range of -40°C to +85°C.

LED Indication - Discrete Feature Summary

• Emits distinct cyan illumination suitable for specialized indicator applications
• Utilizes a water-clear oval lens to maximize light transmission efficiency
• Designed for high-density surface-mount assembly processes

LED Indication - Discrete Applications

• Electronic device status indicators
• Instrument panel backlighting
• Consumer electronics signaling

LED Indication - Discrete Procurement Notes

Verify the specific suffix configuration against official Kingbright documentation to ensure correct color and binning specifications. Confirm moisture sensitivity level handling requirements during storage and reflow soldering processes. Validate RoHS3 compliance status for target market regulations before final procurement authorization.

LED Indication - Discrete Selection Notes

Select this component when a compact form factor is required alongside specific cyan spectral output. Evaluate thermal management needs given the 120 mW power rating and operating temperature limits. Ensure PCB footprint compatibility with the 1208 package dimensions and J-lead terminal configuration.

LED Indication - Discrete Part Context

This part belongs to the Kingbright 3021 series of single-color LEDs, designed for modern surface-mount technology applications. The series offers various color options within a standardized small outline package, facilitating consistent design integration across different product lines while maintaining reliable electrical performance characteristics.

LED Indication - Discrete Replacement Considerations

Consult official Kingbright substitution guides for verified equivalent parts. Cross-reference pinout compatibility and luminous intensity bins before implementing any alternative components in existing designs.
