AA3527ASYSK/J3-50MAV

$0.66

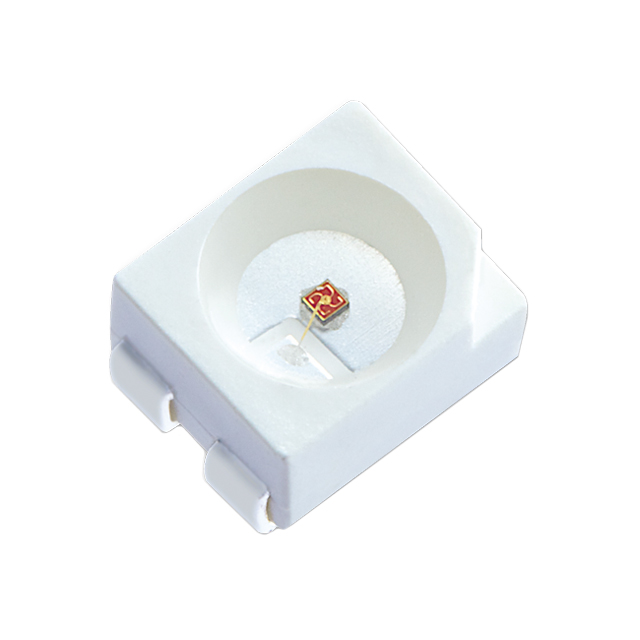

Description：LED YELLOW CLEAR 4SMD
Series：-
Mfr：Kingbright
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:01e03bc03549 Category: LED Indication - Discrete Brand: Kingbright

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

AA3527ASYSK/J3-50MAV is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Kingbright. Its product description is LED YELLOW CLEAR 4SMD. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for AA3527ASYSK/J3-50MAV

Description：LED YELLOW CLEAR 4SMD
Series：-
Mfr：Kingbright
Package：Tape & Reel (TR),Cut Tape (CT)
Color：Yellow
Configuration：Independent
Lens Color：Colorless
Lens Transparency：Clear
Millicandela Rating：1500mcd
Lens Style：Round with Flat Top
Lens Size：2.40mm Dia
Voltage - Forward (Vf) (Typ)：2.3V
Current - Test：50mA
Viewing Angle：120°
Mounting Type：Surface Mount
Wavelength - Dominant：590nm
Wavelength - Peak：590nm
Features：-
Package / Case：4-SMD, J-Lead
Supplier Device Package：4-SMD
Size / Dimension：3.20mm L x 2.70mm W
Height (Max)：2.15mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for AA3527ASYSK/J3-50MAV

AA3527ASYSK/J3-50MAV

LED Indication - Discrete Overview

The AA3527ASYSK/J3-50MAV is a single-color yellow surface-mount LED manufactured by Kingbright. It features a J-leaded 4-SMD package with dimensions of 3.20mm length, 2.70mm width, and a maximum height of 2.15mm. The component emits light at a peak wavelength of 590nm with a luminous intensity of 1500mcd. Electrical characteristics include a forward voltage of 2.3V at a test current of 50mA and a power rating of 125mW. It operates within a temperature range of -40°C to +85°C and offers a 120-degree viewing angle.

LED Indication - Discrete Feature Summary

High-intensity yellow emission suitable for clear visibility applications
J-leaded SMD package design facilitates automated placement
Water-clear lens provides wide 120-degree viewing angle

LED Indication - Discrete Applications

Panel indicator lights
Instrumentation status displays
Consumer electronics front panels

LED Indication - Discrete Procurement Notes

Verify the specific suffix J3-50MAV against official Kingbright documentation to confirm lead frame configuration and drive current specifications. Ensure compatibility with standard reflow soldering profiles for moisture-sensitive devices. Cross-reference Mouser or DigiKey part numbers for accurate packaging details such as cut tape or reel quantities before ordering.

LED Indication - Discrete Selection Notes

Select this component when high brightness in a compact 3.2mm x 2.7mm footprint is required. The 50mA drive current supports higher intensity compared to standard 20mA variants. Consider the J-lead form factor for specific PCB layout constraints requiring enhanced mechanical stability during assembly.

LED Indication - Discrete Part Context

This part belongs to Kingbright's single-color LED portfolio, specifically designed for general indication purposes. It utilizes standard semiconductor materials to produce yellow light. The product line emphasizes reliability and consistent optical performance across manufacturing batches for industrial and commercial electronic assemblies.
