Product Detailed Parameters
- Description：LED RED CLEAR SMD
- Series：-
- Mfr：Kingbright
- Package：Tape & Reel (TR),Cut Tape (CT)
- Color：Red
- Configuration：Standard
- Lens Color：Colorless
- Lens Transparency：Clear
- Millicandela Rating：30mcd
- Lens Style：Round with Flat Top
- Lens Size：2.40mm Dia
- Voltage - Forward (Vf) (Typ)：2V
- Current - Test：20mA
- Viewing Angle：120°
- Mounting Type：Surface Mount
- Wavelength - Dominant：625nm
- Wavelength - Peak：627nm
- Features：-
- Package / Case：2-PLCC
- Supplier Device Package：SMD
- Size / Dimension：3.20mm L x 2.80mm W
- Height (Max)：2.10mm
- Grade：-
- Qualification：-
Download product information
Overview

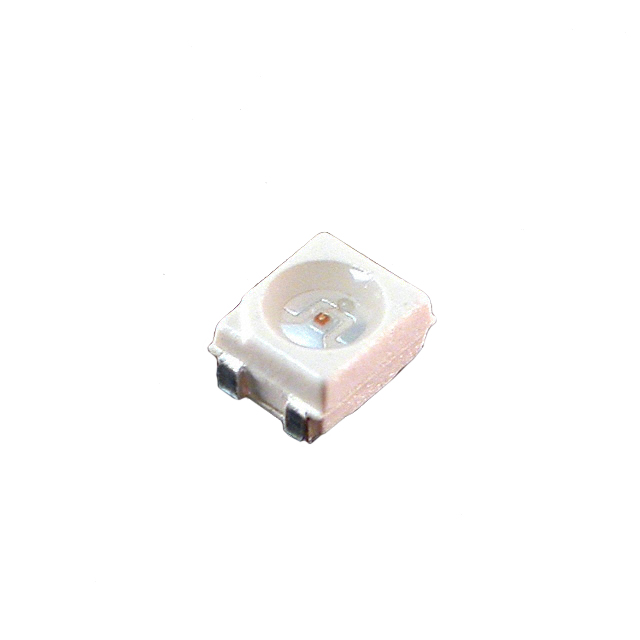

The AA3528AEC is a single-color red surface-mount LED manufactured by Kingbright. It features a water-clear lens with a round flat shape and a 2.4 mm diameter, housed in a 1411 (3.50 x 2.80 mm) SMD package with a maximum height of 1.9 mm. The device emits light at a peak wavelength of 625 nm with a viewing angle of 120 degrees. Electrical characteristics include a forward voltage of 2 V and a forward current rating of 20 mA. It operates within a temperature range of -40°C to +85°C and complies with RoHS standards.
Feature Summary
- High-efficiency red emission for clear visibility
- Water-clear lens design for optimal light transmission
- Standard 1411 surface-mount footprint for automated assembly
Applications
- Indicator lights for electronic equipment
- Alarm system visual signaling
- Digital display illumination
Procurement Notes
Verify the specific datasheet version and manufacturer specifications prior to procurement, as component parameters may vary between production batches or regional compliance requirements. Confirm that the received components match the exact part number AA3528AEC and adhere to the stated electrical ratings and environmental operating conditions defined in the official documentation.
Selection Notes
Select this component when a standard red indicator with high efficiency is required for space-constrained designs. The 1411 package size offers a balance between brightness and board real estate. Ensure the application circuit supports the specified 20 mA forward current and 2 V forward voltage drop to maintain optimal performance and longevity without exceeding thermal limits.
Part Context
This component belongs to the Kingbright AA series of surface-mount LEDs, designed for general-purpose indication. The AA3528AEC specifically utilizes a red InGaAlP on GaAs substrate technology to achieve its color output. It is part of a broader family of SMD LEDs offering various colors and intensities within the same mechanical form factor.
Replacement Considerations
Direct substitutes include other 1411 red SMD LEDs from Kingbright such as the AA3528SURC or AA3528EC, provided they meet the specific wavelength and intensity requirements of the design.
