AA3528APR2C/A

LED Indication - Discrete Overview

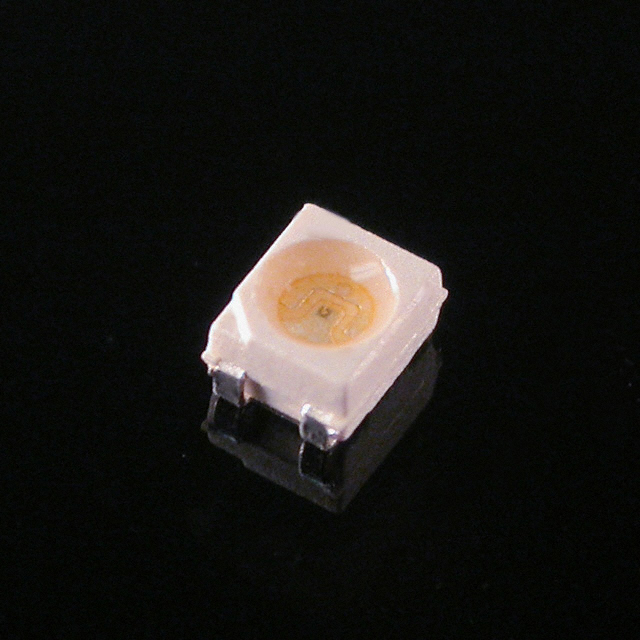

The AA3528APR2C/A is a pink surface-mount LED manufactured by Kingbright. It features a clear lens and operates at a typical forward voltage of 3.2V with a test current of 20mA. The component emits light with an intensity of 100mcd and offers a viewing angle of 120 degrees. Its physical dimensions are 3.5mm in length, 2.8mm in width, and 1.9mm in height, housed in a standard SMD package.

LED Indication - Discrete Feature Summary

• Pink emission color with clear lens for high visibility
• Standard surface-mount design for automated assembly
• Wide 120-degree viewing angle for broad illumination coverage

LED Indication - Discrete Applications

• Electronic device status indication
• Control panel indicator lights
• Appliance operational signaling

LED Indication - Discrete Procurement Notes

Verify the exact part number suffix to confirm the specific pink shade and lens clarity, as variations exist within the series. Confirm RoHS compliance status and moisture sensitivity level requirements against your manufacturing process standards before finalizing procurement orders.

LED Indication - Discrete Selection Notes

Select this component when a distinct pink visual signal is required for low-power indication applications. Ensure the circuit design accommodates the 3.2V forward voltage drop and 20mA operating current to maintain optimal brightness and longevity without exceeding thermal limits.

LED Indication - Discrete Part Context

This model belongs to Kingbright's 3528 metric series of single-color LEDs. It shares the standard 3.5x2.8mm footprint common to many surface-mount indicators, allowing for flexible PCB layout options while providing reliable performance in consumer electronics and industrial equipment.

LED Indication - Discrete Replacement Considerations

AA3528APR7C/A is a documented substitute offering similar pink emission characteristics and form factor compatibility.
