AA3528SECKT/J3

$0.56

Description：LED RED CLEAR 2SMD
Series：-
Mfr：Kingbright
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:af78defcb693 Category: LED Indication - Discrete Brand: Kingbright

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

AA3528SECKT/J3 is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Kingbright. Its product description is LED RED CLEAR 2SMD. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for AA3528SECKT/J3

Description：LED RED CLEAR 2SMD
Series：-
Mfr：Kingbright
Package：Tape & Reel (TR),Cut Tape (CT)
Color：Red
Configuration：Independent
Lens Color：Colorless
Lens Transparency：Clear
Millicandela Rating：1500mcd
Lens Style：Round with Flat Top
Lens Size：2.40mm Dia
Voltage - Forward (Vf) (Typ)：2.2V
Current - Test：20mA
Viewing Angle：120°
Mounting Type：Surface Mount
Wavelength - Dominant：625nm
Wavelength - Peak：640nm
Features：-
Package / Case：2-PLCC
Supplier Device Package：2-SMD
Size / Dimension：3.20mm L x 2.80mm W
Height (Max)：2.15mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for AA3528SECKT/J3

AA3528SECKT/J3

LED Indication - Discrete Overview

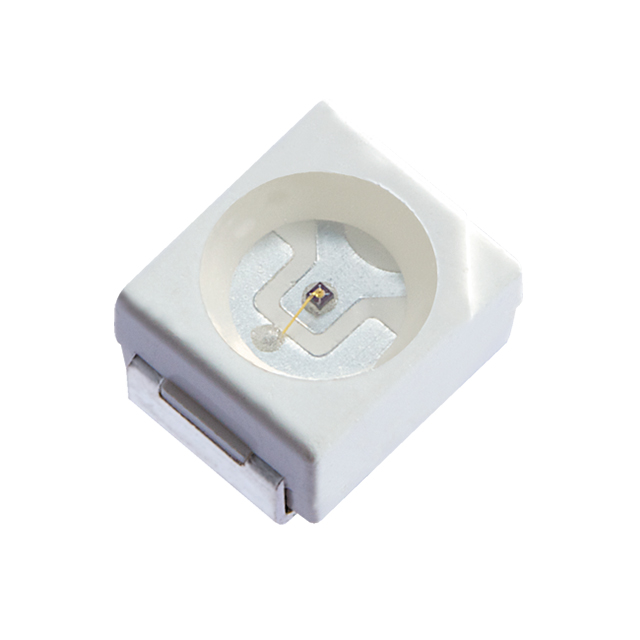

The Kingbright AA3528SECKT/J3 is a single-color surface-mount LED emitting red light with a peak wavelength of 640 nm and a dominant wavelength of 625 nm. It features a water clear, round flat lens housed in a 2-PLCC (2-SMD) package measuring 3.20 mm in length, 2.80 mm in width, and up to 2.15 mm in height. The component operates at a forward current of 20 mA with a typical forward voltage of 2.2 V. It delivers a luminous intensity of 1500 mcd and provides a viewing angle of 120 degrees.

LED Indication - Discrete Feature Summary

High brightness output with 1500 mcd intensity for clear visibility
Water clear lens design ensures optimal light transmission
Standard 2-PLCC surface mount footprint for automated assembly

LED Indication - Discrete Applications

Panel indicator lights
Status indication on electronic devices
General purpose signaling

LED Indication - Discrete Procurement Notes

Verify the specific suffix J3 against official Kingbright documentation to confirm exact binning and packaging specifications. Confirm RoHS3 compliance status directly from the manufacturer datasheet prior to integration. Ensure moisture sensitivity level 3 handling protocols are followed during storage and reflow soldering processes.

LED Indication - Discrete Selection Notes

Select this component when high-intensity red indication is required within standard SMD constraints. The 120-degree viewing angle offers broad visibility compared to narrow-beam alternatives. Verify that the 2.2 V forward voltage aligns with the target circuit drive capabilities and thermal management requirements.

LED Indication - Discrete Part Context

This part belongs to the Kingbright AA3528 series of single-color LEDs. It utilizes the common 3528 metric package dimensions, facilitating compatibility with existing PCB footprints designed for similar surface-mount components. The series supports various colors and intensities for diverse industrial applications.
