AA3528SESK/J3

$0.50

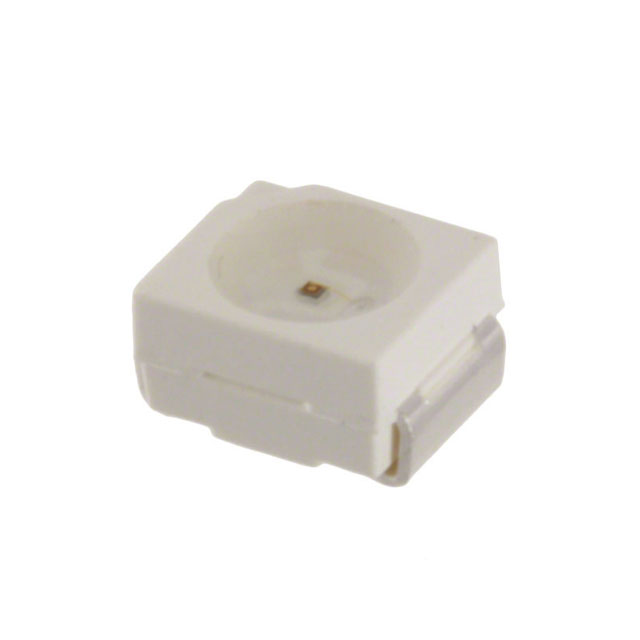

Description：LED RED CLEAR SMD
Series：-
Mfr：Kingbright
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:194ea67d0c83 Category: LED Indication - Discrete Brand: Kingbright

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

AA3528SESK/J3 is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Kingbright. Its product description is LED RED CLEAR SMD. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for AA3528SESK/J3

Description：LED RED CLEAR SMD
Series：-
Mfr：Kingbright
Package：Tape & Reel (TR),Cut Tape (CT)
Color：Red
Configuration：Standard
Lens Color：Colorless
Lens Transparency：Clear
Millicandela Rating：450mcd
Lens Style：Round with Flat Top
Lens Size：2.40mm Dia
Voltage - Forward (Vf) (Typ)：2.2V
Current - Test：20mA
Viewing Angle：120°
Mounting Type：Surface Mount
Wavelength - Dominant：625nm
Wavelength - Peak：640nm
Features：-
Package / Case：2-PLCC
Supplier Device Package：SMD
Size / Dimension：3.20mm L x 2.80mm W
Height (Max)：2.10mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for AA3528SESK/J3

AA3528SESK/J3

LED Indication - Discrete Overview

The AA3528SESK/J3 is a single-color surface-mount LED manufactured by Kingbright, emitting super bright orange light with a peak wavelength of 601 nm. It features a water clear lens and delivers a nominal luminous intensity of 350 mcd at a forward current of 30 mA. The component operates within a temperature range of -40 °C to +85 °C and complies with RoHS standards.

LED Indication - Discrete Feature Summary

Super bright orange emission for high visibility applications
Water clear lens design for optimal light transmission
Compatible with standard SMT assembly and solder processes

LED Indication - Discrete Applications

Backlighting systems
Panel indicator lights
Status indication in electronic devices

LED Indication - Discrete Procurement Notes

Verify the specific suffix designation against official Kingbright documentation to confirm physical package variations or lead frame configurations. Ensure compatibility with automated pick-and-place equipment specifications. Confirm moisture sensitivity levels and reflow soldering profiles prior to production integration.

LED Indication - Discrete Selection Notes

Select this component when high-intensity orange illumination is required in compact surface-mount designs. Consider the 350 mcd output and 601 nm wavelength for visibility requirements. Evaluate thermal management needs given the 75 mW power rating and operating temperature limits.

LED Indication - Discrete Part Context

This part belongs to the Kingbright 3528 series of surface-mount LEDs, designed for dense PCB layouts. The AA3528SESK variant specifically targets applications requiring superior brightness compared to standard indicators, utilizing advanced phosphor technology for consistent color rendering.
