AA3528SYC

Overview

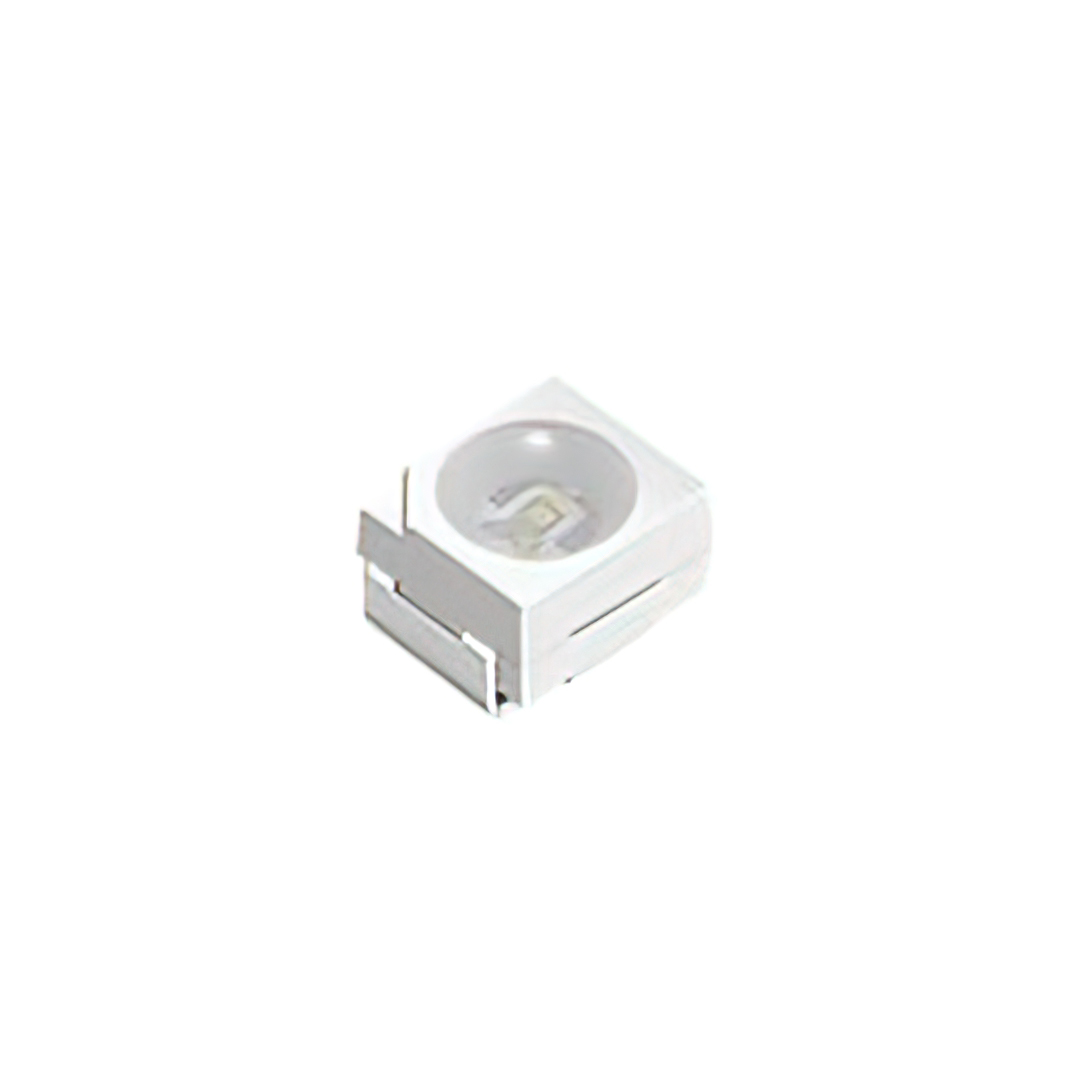

The AA3528SYC is a single-color surface mount LED lamp manufactured by Kingbright, featuring a yellow emission with a peak wavelength of 588 nm. It utilizes a water clear lens and operates within a temperature range of -40 °C to +85 °C. The component has a forward current rating of 20 mA and a power dissipation capacity of 62.5 mW. It is housed in a 1411 (3.5 mm x 2.8 mm) package with a height of 1.9 mm and offers a viewing angle of 120 degrees.

Feature Summary

• Yellow light emission with a 588 nm peak wavelength
• Water clear lens for optimal light transmission
• Standard SMD package dimensions of 3.5 mm x 2.8 mm

Applications

• Indicator lights for electronic devices
• Status displays on control panels
• General illumination in compact electronics

Procurement Notes

Verify the specific suffix codes against official Kingbright documentation to ensure correct binning and optical characteristics. Confirm RoHS compliance status through manufacturer datasheets prior to procurement. Check for any recent product change notifications that may affect material composition or performance specifications.

Selection Notes

Select this component for applications requiring standard yellow indication in space-constrained designs. Ensure circuit design accommodates the 20 mA forward current requirement. Verify thermal management capabilities given the 62.5 mW power dissipation limit in enclosed environments.

Part Context

This part belongs to Kingbright's standard SMD LED portfolio, designed for high-volume manufacturing processes. It shares mechanical footprints with other 3528 series components but differs in optical output and electrical parameters based on the semiconductor materials used for yellow emission.

Replacement Considerations

Direct substitutes include AA3528SGS for green variants or AA3528LEC for red variants within the same package family. Cross-reference with KA-3528SYCT as an alternative designation.
