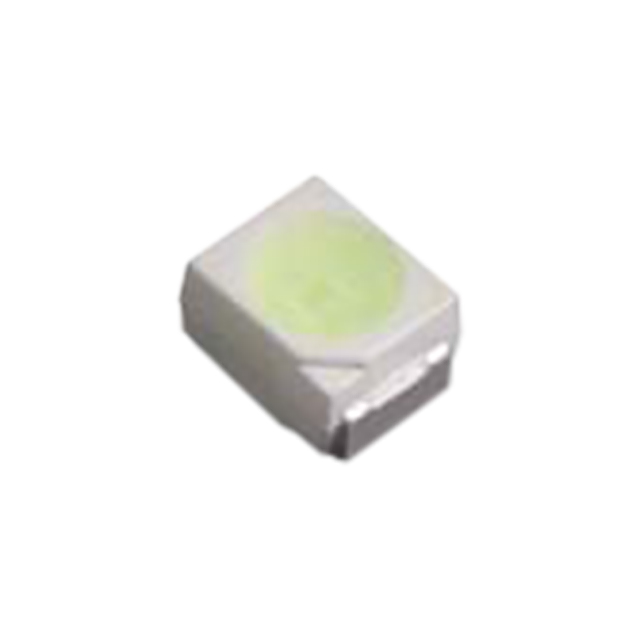

AA3528VRBXS/A-SC-AMT
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters
- Description：LED BLUE CLEAR 2PLCC SMD
- Series：-
- Mfr：Kingbright
- Package：Tape & Reel (TR),Cut Tape (CT)
- Color：Blue
- Configuration：Standard
- Lens Color：Colorless
- Lens Transparency：Clear
- Millicandela Rating：1300mcd
- Lens Style：Round with Flat Top
- Lens Size：2.40mm Dia
- Voltage - Forward (Vf) (Typ)：3.3V
- Current - Test：20mA
- Viewing Angle：120°
- Mounting Type：Surface Mount
- Wavelength - Dominant：-
- Wavelength - Peak：-
- Features：-
- Package / Case：2-PLCC
- Supplier Device Package：2-PLCC
- Size / Dimension：3.20mm L x 2.80mm W
- Height (Max)：2.10mm
- Grade：-
- Qualification：-
Download product information
Overview
The AA3528VRBXS/A-SC-AMT is a single-color sapphire blue surface-mount LED from Kingbright, housed in a 1411 (3528 metric) package measuring 3.5 mm in length, 2.8 mm in width, and 1.9 mm in height. It features a round flat lens with water-clear transparency and emits light at a viewing angle of 120 degrees. The component operates with a forward current of 20 mA and a forward voltage of 3.3 V, resulting in a power rating of 120 mW. It delivers an optical intensity of 1.3 cd and functions within a temperature range of -40 C to +85 C.
Feature Summary
- Emits sapphire blue light through a water-clear round flat lens for consistent color transmission.
- Designed for surface mount technology with a compact 1411 footprint suitable for dense PCB layouts.
- Provides high optical intensity of 1.3 cd with a wide 120-degree viewing angle.
Applications
- Indicator lights for electronic devices requiring distinct blue signaling.
- Backlighting components in consumer electronics displays.
- Status indicators in industrial control panels.
Procurement Notes
Verify the exact part number suffix against official Kingbright documentation to ensure correct binning and optical specifications. Confirm RoHS compliance status and moisture sensitivity level requirements prior to assembly. Check datasheet limits for forward current and thermal management to prevent premature degradation during operation.
Selection Notes
Select this component when a specific sapphire blue wavelength is required for visual indication. Ensure the 1411 package dimensions align with the target PCB footprint constraints. Consider the 3.3 V forward voltage drop for circuit design compatibility and verify that the 120-degree viewing angle meets the visibility requirements of the end application.
Part Context
This LED belongs to Kingbright's Special Colors series, focusing on distinct spectral outputs. It utilizes standard SMD packaging common in the 3528 form factor, allowing for automated placement. The product line emphasizes reliability and consistent color performance for commercial and industrial lighting applications.
Replacement Considerations
Consult official Kingbright substitution guides for verified equivalents. Generic 3528 blue LEDs may differ in chromaticity coordinates or luminous intensity. Verify pinout compatibility and thermal characteristics before swapping with other manufacturers' offerings.
