AA3528ZGCK

LED Indication - Discrete Overview

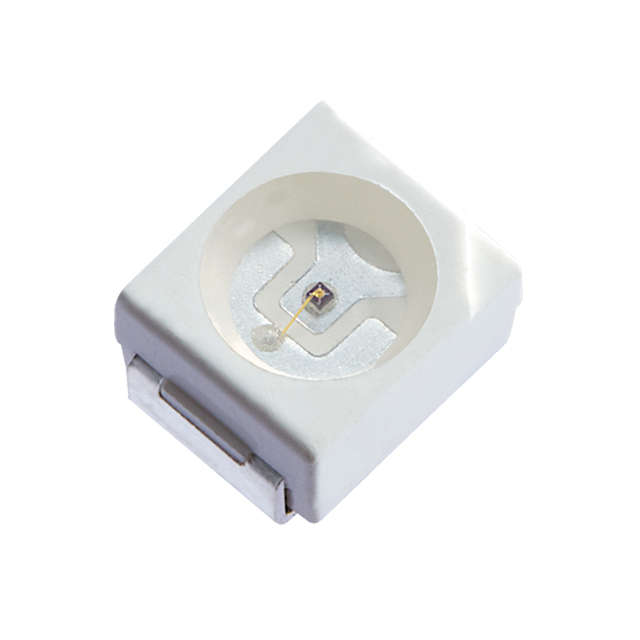

The AA3528ZGCK is a single-color green surface-mount LED manufactured by Kingbright. It features a 1411 (3528 metric) package with dimensions of 3.20 mm in length, 2.80 mm in width, and a maximum height of 2.15 mm. The component emits light at a peak wavelength of 515 nm and a dominant wavelength of 525 nm. It provides an optical intensity of 1000 mcd with a viewing angle of 120 degrees. Electrical characteristics include a forward voltage of 3.3 V and a test current of 20 mA, resulting in a power rating of 123 mW. The lens is colorless with a water-clear finish.

LED Indication - Discrete Feature Summary

• High-intensity green emission with 1000 mcd brightness for clear visibility
• Standard 1411 SMD form factor suitable for automated assembly processes
• Wide 120-degree viewing angle ensures broad light distribution
• Water-clear lens design maximizes light transmission efficiency

LED Indication - Discrete Applications

• Electronic device status indicators
• Panel board illumination
• Consumer appliance signaling
• Industrial control interface lighting

LED Indication - Discrete Procurement Notes

Verify the specific suffix configuration against the manufacturer datasheet to ensure compatibility with required thermal and electrical specifications. Confirm RoHS3 compliance status prior to integration into environmentally regulated assemblies. Check moisture sensitivity level ratings to determine appropriate handling protocols during storage and reflow soldering processes. Validate package dimensions against PCB footprint requirements to prevent mechanical interference.

LED Indication - Discrete Selection Notes

Select this component when high luminous intensity is required for green indication applications. The 1000 mcd output exceeds standard low-power variants, making it suitable for high-ambient light environments. Ensure circuit design accommodates the 3.3 V forward voltage drop. Consider the 1411 package size for space-constrained layouts requiring reliable surface-mount technology integration without sacrificing brightness performance.

LED Indication - Discrete Part Context

This part belongs to the Kingbright AA3528 series of surface-mount LEDs. The series offers various color options including red, yellow, and green within the same standardized 1411 package footprint. This specific model represents the high-brightness green variant, distinguished by its superior candela rating compared to standard intensity versions in the same family.

LED Indication - Discrete Replacement Considerations

AA3528ZGC-G
