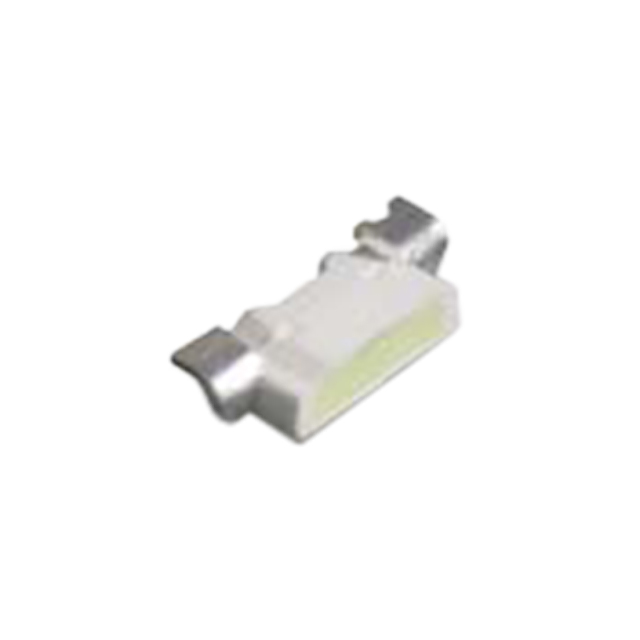

AA4008VRBB1S

$0.92

Description：LED BLUE CLEAR CHIP SMD R/A
Series：-
Mfr：Kingbright
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:ea5b466b0222 Category: LED Indication - Discrete Brand: Kingbright

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

AA4008VRBB1S is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Kingbright. Its product description is LED BLUE CLEAR CHIP SMD R/A. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for AA4008VRBB1S

Description：LED BLUE CLEAR CHIP SMD R/A
Series：-
Mfr：Kingbright
Package：Tape & Reel (TR),Cut Tape (CT)
Color：Blue
Configuration：Standard
Lens Color：Colorless
Lens Transparency：Clear
Millicandela Rating：1300mcd
Lens Style：Rectangle with Irregular Top
Lens Size：-
Voltage - Forward (Vf) (Typ)：3.3V
Current - Test：20mA
Viewing Angle：120°
Mounting Type：Surface Mount, Right Angle
Wavelength - Dominant：-
Wavelength - Peak：-
Features：-
Package / Case：2-SMD, J-Lead
Supplier Device Package：Chip LED
Size / Dimension：4.00mm L x 1.40mm W
Height (Max)：0.90mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for AA4008VRBB1S

AA4008VRBB1S

LED Indication - Discrete Overview

The Kingbright AA4008VRBB1S is a single-color surface-mount LED emitting blue light. It utilizes a right-angle package design with dimensions of 4.0mm x 0.8mm x 1.4mm. The component features a water-clear rectangular lens and operates at a forward current of 20mA with a forward voltage of 3.3V. It delivers an optical intensity of 1.3 cd and has a power rating of 120mW. The device supports reel and cut tape packaging formats.

LED Indication - Discrete Feature Summary

Right-angle emission profile for directional lighting applications
Water-clear rectangular lens for optimized light transmission
Surface-mount technology compatible with automated assembly

LED Indication - Discrete Applications

Indicator lights in electronic devices
Backlighting for control panels
Status indication in consumer electronics

LED Indication - Discrete Procurement Notes

Verify the specific suffix 'B1S' against the manufacturer's latest datasheet to confirm binning and wavelength specifications. Ensure compatibility with reflow soldering profiles specified in the official documentation. Confirm packaging type requirements such as reel or cut tape availability prior to ordering.

LED Indication - Discrete Selection Notes

Select this component when a low-profile, right-angle blue indicator is required. Consider the 1.3 cd intensity and 3.3V forward voltage for circuit design. Verify mechanical clearance for the 4.0mm length and 1.4mm height within the target enclosure.

LED Indication - Discrete Part Context

This part belongs to Kingbright's SMD LED portfolio, specifically designed for surface-mount applications. It falls under the category of single-color LEDs with specialized color options. The right-angle form factor distinguishes it from standard top-emitting variants in the same series.
