AA4040ZGC

LED Indication - Discrete Overview

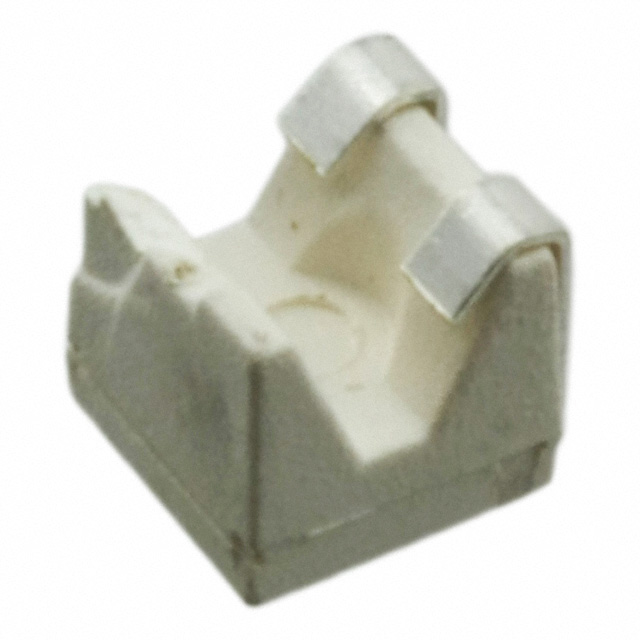

The AA4040ZGC is a single-color surface-mount LED manufactured by Kingbright, featuring a pure green light emission with a peak wavelength of 515 nm and a dominant wavelength of 525 nm. It utilizes a water-clear lens housed in a 2-SMD Boomerang package measuring 4.00 mm in length and 3.60 mm in width, with a maximum height of 4.00 mm. The device operates at a typical forward voltage of 3.3 V and delivers a nominal luminous intensity of 600 mcd when tested at 20 mA. It supports a maximum forward current of 25 mA and functions within a temperature range of -40 °C to +85 °C.

LED Indication - Discrete Feature Summary

• Emits distinct green light through a water-clear dome lens for high visibility
• Designed for right-angle surface mount installation on printed circuit boards
• Constructed with lead-free materials compliant with RoHS3 standards

LED Indication - Discrete Applications

• Status indication in electronic equipment
• Panel indicators for consumer devices
• Signal lights in industrial control systems

LED Indication - Discrete Procurement Notes

Verify the specific suffix ZGC against official Kingbright documentation to confirm the green color variant and right-angle pin configuration. Ensure compatibility with standard SMT reflow profiles and check for moisture sensitivity level requirements during storage and handling. Confirm availability status as distribution data may vary.

LED Indication - Discrete Selection Notes

Select this component for applications requiring a compact green indicator with right-angle termination. Compare specifications such as viewing angle and luminous intensity against alternative colors in the AA4040 series. Ensure the 3.3 V forward voltage aligns with the driving circuit design and that the 4x4 mm footprint fits the PCB layout constraints.

LED Indication - Discrete Part Context

This part belongs to the Kingbright AA4040 series of second-generation SMD LEDs, which offer improved material durability and electrical reliability for dense system designs. The series provides various color options in a standardized 4x4 mm package, facilitating consistent mechanical design across different product lines while allowing for flexible optical selection.

LED Indication - Discrete Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
