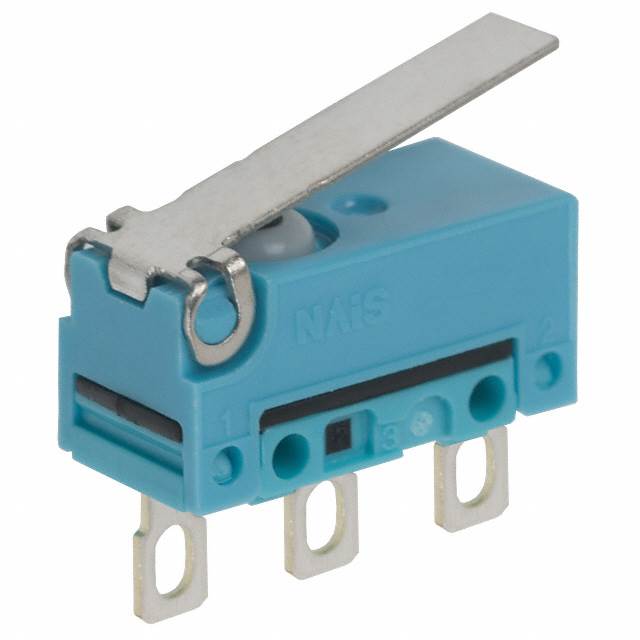

ABJ1412619

ABJ1412619 is listed in the Limit Switches range at ChipApex. The manufacturer field lists Panasonic Electric Works. Its product description is SWITCH SNAP ACT SPDT 0.1A 125V. Review the specifications below when checking this part for your BOM.

Limit Switches specifications for ABJ1412619

• Description：SWITCH SNAP ACT SPDT 0.1A 125V
• Series：ABJ
• Mfr：Panasonic Electric Works
• Package：Bulk
• Circuit：SPDT
• Switch Function：On-Mom
• Current Rating (Amps)：100mA (AC/DC)
• Voltage Rating - AC：125 V
• Actuator Type：Lever, Straight
• Mounting Type：Chassis Mount
• Termination Style：Solder Lug
• Ingress Protection：IP50 - Dust Protected
• Features：-
• Operating Force：65gf
• Release Force：5.099gf
• Operating Position：0.268" (6.8mm)
• Pretravel：0.120" (3.0mm)
• Differential Travel：0.020" (0.5mm)
• Overtravel：0.020" (0.5mm)
• Operating Temperature：-40°C ~ 85°C
• Voltage Rating - DC：30 V

Limit Switches datasheet and documents for ABJ1412619
