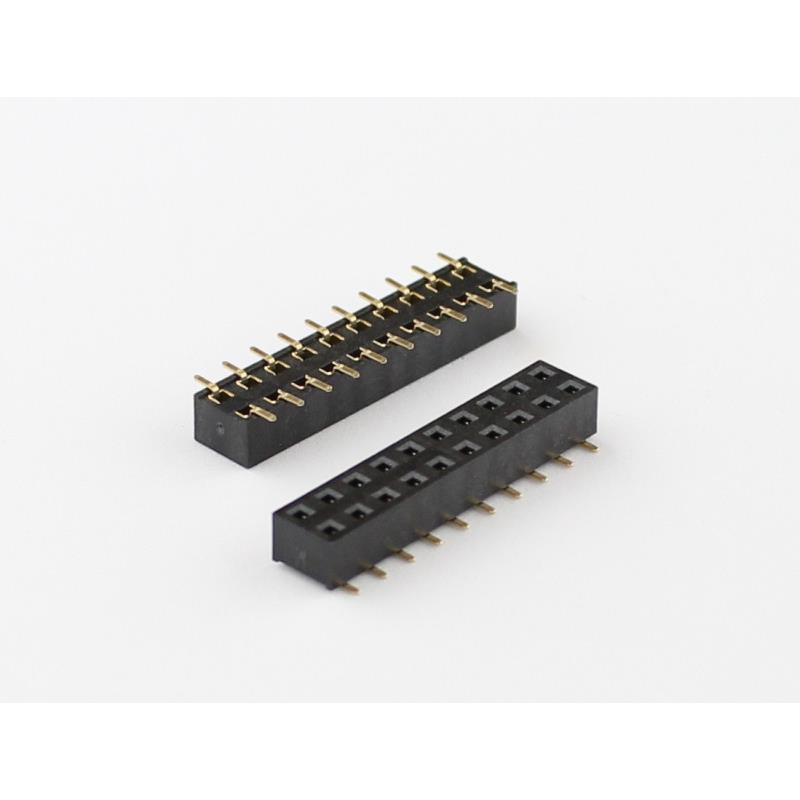

ABL-254-16-SR45

ABL-254-16-SR45 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Assmann WSW Components. Its product description is FEMALE HEADER, STAMPED PIN, 2.54. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for ABL-254-16-SR45

• Description：FEMALE HEADER, STAMPED PIN, 2.54
• Series：ABL
• Mfr：Assmann WSW Components
• Package：Tape & Reel (TR)
• Connector Type：Header
• Contact Type：Female Socket
• Style：Board to Board
• Number of Positions：16
• Number of Positions Loaded：All
• Pitch - Mating：0.100" (2.54mm)
• Number of Rows：2
• Row Spacing - Mating：0.100" (2.54mm)
• Mounting Type：Surface Mount
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：-
• Insulation Color：Black
• Insulation Height：0.150" (3.81mm)
• Contact Length - Post：-
• Operating Temperature：-55°C ~ 105°C
• Material Flammability Rating：UL94 V-0
• Contact Finish - Post：-
• Mated Stacking Heights：-
• Ingress Protection：-
• Features：Board Guide
• Current Rating (Amps)：3A
• Voltage Rating：-

Headers, Receptacles, Female Sockets datasheet and documents for ABL-254-16-SR45
