ABM10W-16.0000MHZ-8-R80-B1U-T3

Crystals Overview

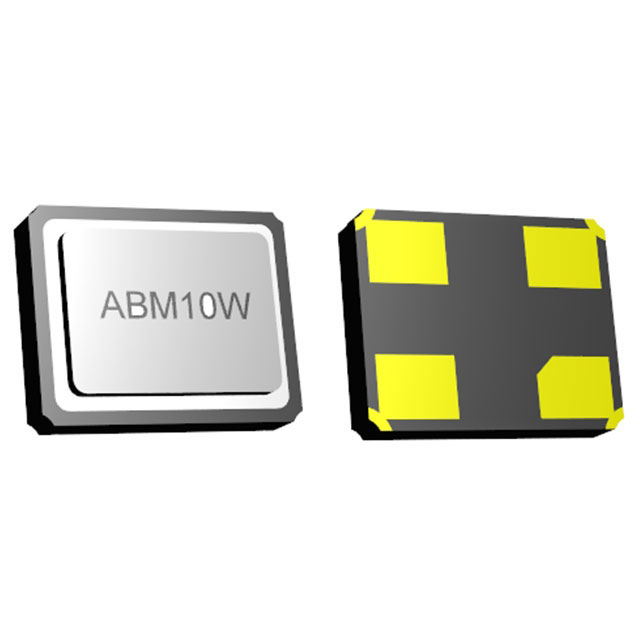

The ABM10W-16.0000MHZ-8-R80-B1U-T3 is a fundamental mode quartz crystal manufactured by Abracon LLC, designed for surface-mount applications. It operates at a nominal frequency of 16 MHz with a frequency tolerance and stability of ±10 ppm across the commercial temperature range of -20°C to +70°C. The component features a load capacitance (CL) of 8 pF and an equivalent series resistance (ESR) of 80 Ohms maximum. Packaged in a compact 4-SMD, No Lead form factor measuring 2.5 mm x 2.0 mm x 0.6 mm, it supports a drive level of 10 µW. This part belongs to the ABM10W series, optimized for low power consumption and small footprint requirements in portable electronics.

Crystals Feature Summary

• Ultra-low profile 0.6 mm height design enables integration into space-constrained devices such as wearable technology and thin consumer electronics.
• Optimized low Equivalent Series Resistance (ESR) characteristics facilitate reliable oscillation startup and support extended battery life in IoT sensor nodes.
• Sealed ceramic construction provides environmental protection against moisture and contaminants, ensuring long-term frequency stability without Moisture Sensitivity Level restrictions.

Crystals Applications

• Bluetooth Low Energy (BLE) modules requiring stable clock sources
• Wearable health monitoring devices and smart accessories
• Industrial Internet of Things (IoT) sensor nodes
• Portable medical equipment and diagnostic tools

Crystals Procurement Notes

Verify that the specific suffix R80 corresponds to the required ESR specification of 80 Ohms, as Abracon utilizes unique alphanumeric codes to denote internal manufacturing parameters. Confirm that the standard commercial temperature range of -20°C to +70°C aligns with your system's operational environment. Ensure PCB layout adheres to the recommended land pattern for the 2.5x2.0mm package to maintain mechanical integrity and electrical performance during reflow soldering.

Crystals Selection Notes

Select this component when a balance between minimal physical footprint and robust electrical performance is required for 16 MHz applications. The 8 pF load capacitance is suitable for microcontrollers with integrated internal capacitors or minimal external loading requirements. Consider the 80 Ohm ESR limit if the target application demands lower drive power than higher ESR variants, while noting that wider industrial temperature ranges require different part numbers within the ABM10W family.

Crystals Part Context

This crystal is part of Abracon's Tiny But Mighty™ collection, specifically engineered for modern miniaturization trends. The ABM10W series distinguishes itself by offering reduced thickness compared to traditional 2.5x2.0mm crystals, which typically measure 0.8 mm. By integrating low ESR capabilities directly into the sealed ceramic package, the series addresses common failure modes in low-power designs where standard crystals may struggle to start or maintain oscillation under varying thermal conditions.

Crystals Replacement Considerations

Direct substitutes include other Abracon ABM10W variants with matching 16 MHz frequency and 8 pF load capacitance, such as ABM10W-16.0000MHZ-8-B1U-T3, provided the ESR specifications are compatible. Cross-brand replacements must match the 2.5x2.0x0.6 mm dimensions, 8 pF CL, and ±10 ppm stability to ensure pin-to-pin compatibility and circuit functionality without redesign.
